Sync Scorer Components 19

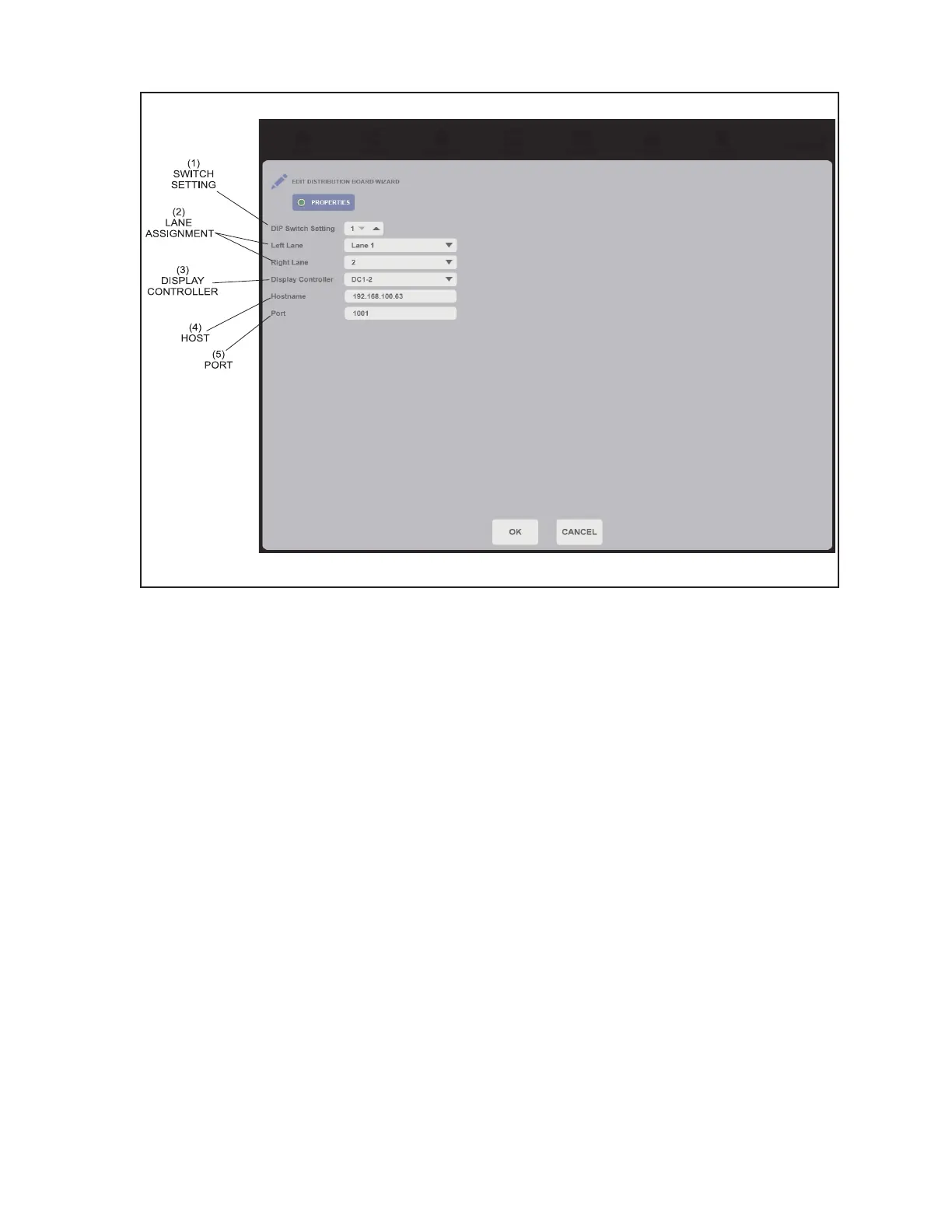

Distribution Properties
(1) Switch Setting - The decimal value of the address of the Board Address 1 switches.
(2) Lane Assignment - From the drop down box, select the left and right lane numbers where the
Distribution Board is connected.
(3) Display Controller - From the drop down box, select the Display Controller that is associated
with the lane pair where the Peripheral Controller is connected.
(4) Host - The IP address assigned to the Peripheral Controller. (For informational use only)
(5) Port - The network port assigned to the Peripheral Controller. (For informational use only)
