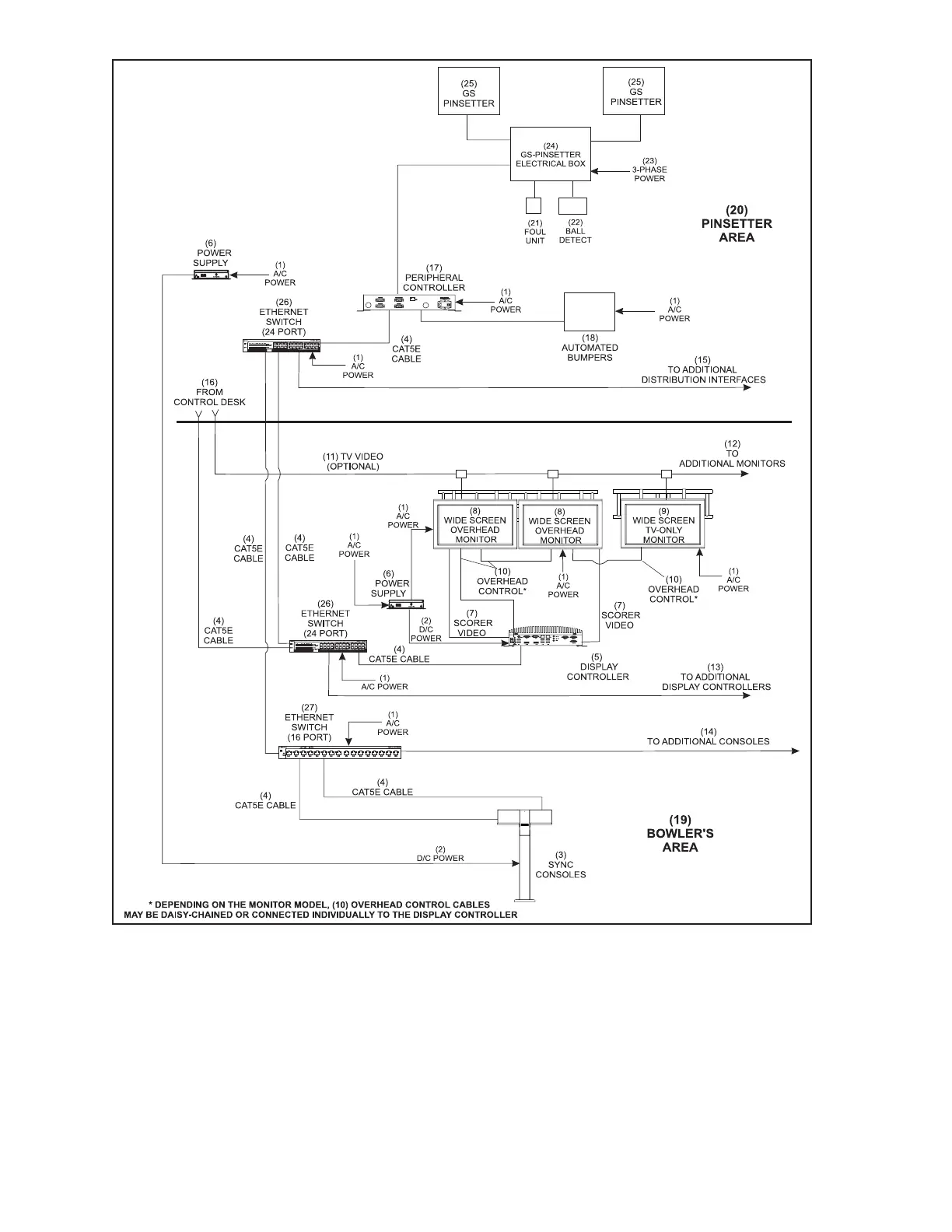

14 System Overview
Sync Scoring System With Sync Tablets and GS-Series Direct Connect Pinsetters
(1) A/C POWER (2) D/C POWER (3) SYNC CONSOLES
(4) CAT5E CABLE (5) DISPLAY CONTROLLER (6) POWER SUPPLY
(7) SCORER VIDEO (8) WIDE SCREEN OVERHEAD (9) WIDE SCREEN TV-ONLY
MONITOR MONITOR
(10) OVERHEAD CONTROL (11) TV VIDEO (OPTIONAL) (12) TO ADDITIONAL MONITORS
(13) TO ADDITIONAL DISPLAY (14) TO ADDITIONAL (15) TO ADDITIONAL DISTRIBUTION
CONTROLLERS CONSOLES INTERFACES
(16) FROM CONTROL DESK (17) PERIPHERAL CONTROLLER (18) AUTOMATED BUMPERS
(19) BOWLER’S AREA (20) PINSETTER AREA (21) FOUL UNIT
(22) BALL DETECT (23) 3-PHASE POWER (24) GS-PINSETTER ELECTRICAL BOX
(25) GS PINSETTER (26) ETHERNET SWITCH (27) ETHERNET SWITCH (16 PORT)
(24 PORT)
