Brunswick Sync - Page 184

8 Sync Overhead Monitors
()6
CENTER TV
NAME
(2)
LANE
ASSIGNMENT
(3)
MONITOR
(5)
MONITOR
ID
(4)
PORT
(1)
NAME
(3)
MONITOR
(4)
PORT
(5)
MONITOR
ID
3

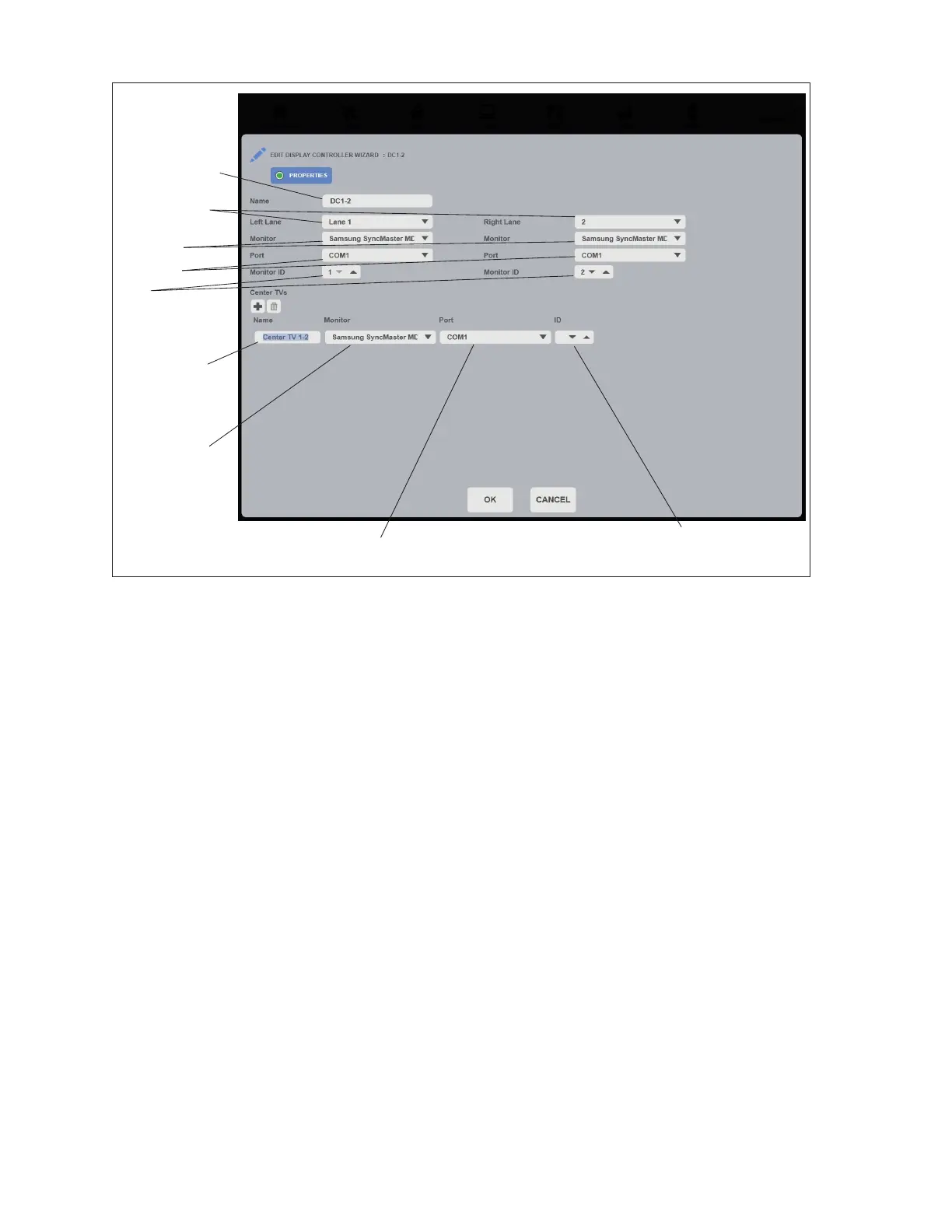

Lane Tab - Display Controller Properties
(1) Name - The name assigned to the Display Controller to identify it from the other controllers in
the system.
(2) Lane Assignment - Drop down boxes used to assign lane numbers to the Display Controller.
Set the Lane Assignment as follows:
Left Lane - The left lane number of the lane pair on which the Display Controller is
installed.
Right Lane - The right lane number of the lane pair on which the Display Controller is
installed.
(3) Monitor - From the drop down boxes, select the model of the monitors used on the left and
right lane of the lane pair. This selection determines the “remote control” codes used to control
the monitor.
(4) Port- From the drop down boxes, select the comport the Display Controller uses to control the
monitors. The setting for both the left and right lane should be set to the same comport number
since both lanes are controlled through a common connection. In most centers these will be set
as follows:
Left Lane - Com1
Right Lane - Com1
Center TVs - Com1
