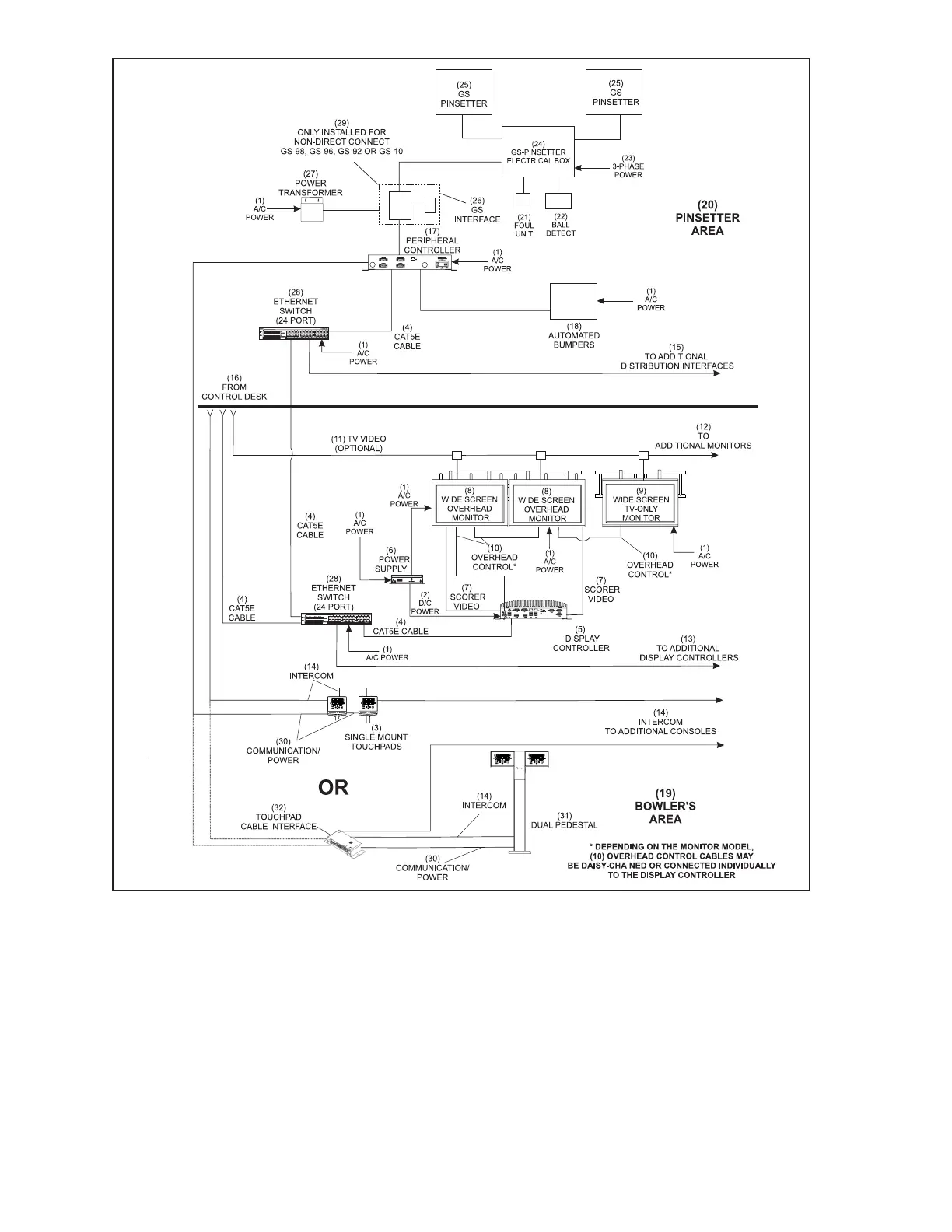

18 System Overview
Sync Scoring System with Sync Touchpads and GS-Series Non-Direct Connect Pinsetters
(1) A/C POWER (2) D/C POWER (3) SINGLE MOUNT TOUCHPADS
(4) CAT5E CABLE (5) DISPLAY CONTROLLER (6) POWER SUPPLY
(7) SCORER VIDEO (8) WIDE SCREEN OVERHEAD (9) WIDE SCREEN TV-ONLY
MONITOR MONITOR
(10) OVERHEAD CONTROL (11) TV VIDEO (OPTIONAL) (12) TO ADDITIONAL MONITORS
(13) TO ADDITIONAL DISPLAY (14) INTERCOM (15) TO ADDITIONAL DISTRIBUTION
CONTROLLERS INTERFACES
(16) FROM CONTROL DESK (17) PERIPHERAL CONTROLLER (18) AUTOMATED BUMPERS
(19) BOWLER’S AREA (20) PINSETTER AREA (21) FOUL UNIT
(22) BALL DETECT (23) 3-PHASE POWER (24) GS-PINSETTER ELECTRICAL BOX
(25) GS PINSETTER (27) POWER TRANSFORMER (28) ETHERNET SWITCH (24 PORT)
(29) ONLY INSTALLED FOR (30) COMMUNICATION/POWER (31) DUAL PEDESTAL
NON-DIRECT CONNECT GS-98, (32) TOUCHPAD CABLE INTERFACE
GS-96, GS-92 OR GS-10
