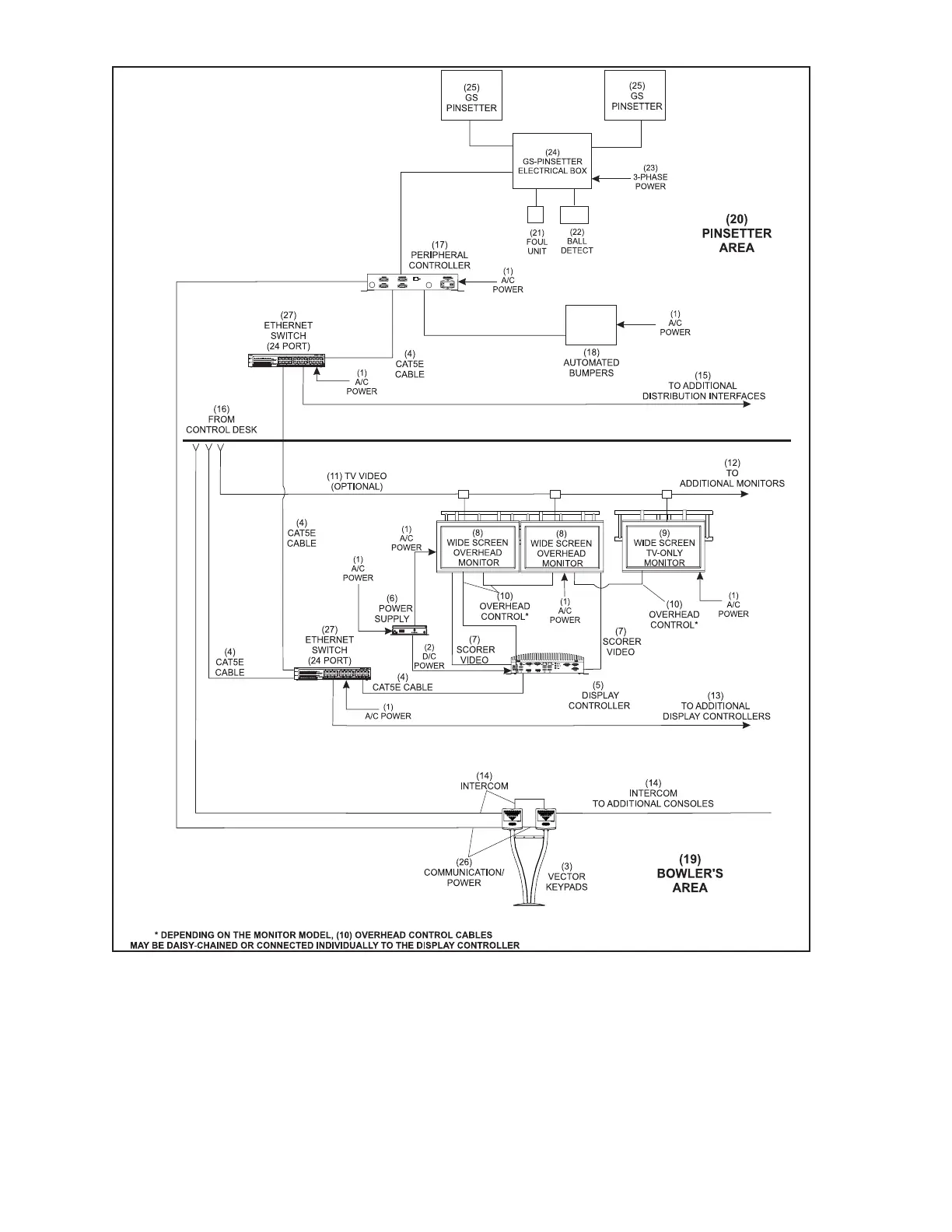

20 System Overview
Sync Scoring System with Vector Type Keyboards and GS-Series Direct Connect Pinsetters
(1) A/C POWER (2) D/C POWER (3) VECTOR KEYPADS
(4) CAT5E CABLE (5) DISPLAY CONTROLLER (6) POWER SUPPLY
(7) SCORER VIDEO (8) WIDE SCREEN OVERHEAD (9) WIDE SCREEN TV-ONLY
MONITOR MONITOR
(10) OVERHEAD CONTROL (11) TV VIDEO (OPTIONAL) (12) TO ADDITIONAL MONITORS
(13) TO ADDITIONAL DISPLAY (14) INTERCOM (15) TO ADDITIONAL DISTRIBUTION
CONTROLLERS INTERFACES
(16) FROM CONTROL DESK (17) PERIPHERAL CONTROLLER (18) AUTOMATED BUMPERS
(19) BOWLER’S AREA (20) PINSETTER AREA (21) FOUL UNIT
(22) BALL DETECT (23) 3-PHASE POWER (24) GS-PINSETTER ELECTRICAL BOX
(25) GS PINSETTER (26) COMMUNICATION/POWER (27) ETHERNET SWITCH (24 PORT)
