Sync Scorer Components 5

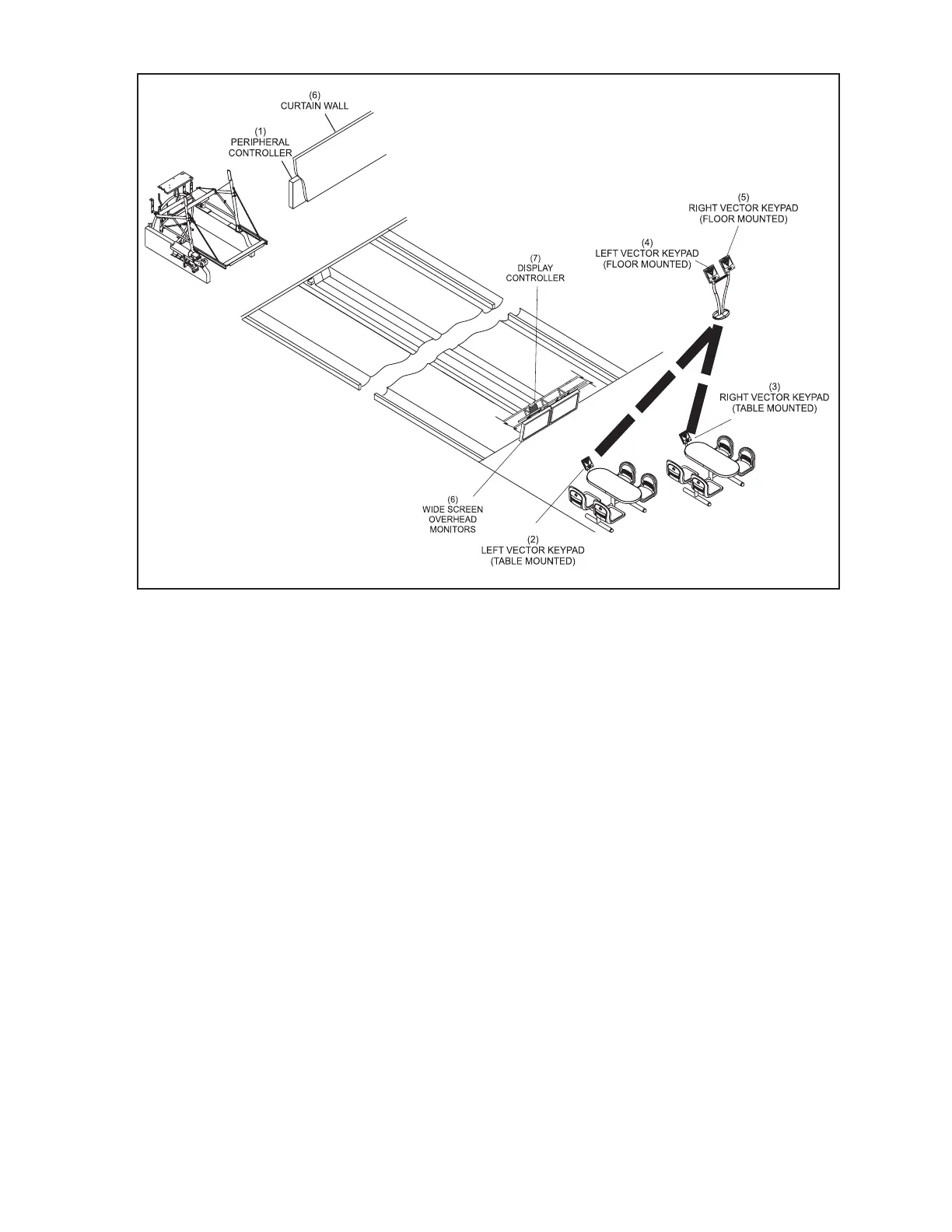

Vector Keypad Conguration Overview
(1) PERIPHERAL CONTROLLER (2) LEFT VECTOR KEYPAD (3) RIGHT VECTOR KEYPAD
(TABLE MOUNTED) (TABLE MOUNTED)
(4) LEFT VECTOR KEYPAD (5) RIGHT VECTOR KEYPAD (6) CURTAIN WALL
(FLOOR MOUNTED) (FLOOR MOUNTED)
(7) DISPLAY CONTROLLER (8) WIDESCREEN OVERHEAD MONITORS
