Cisco Catalyst 4500 Series Administration Guide

6-4
Software Configuration Guide—Release IOS XE 3.6.0SG and IOS 15.2(2)SG
OL-30933-01
Chapter 6 Configuring the Cisco IOS In-Service Software Upgrade Process
About ISSU

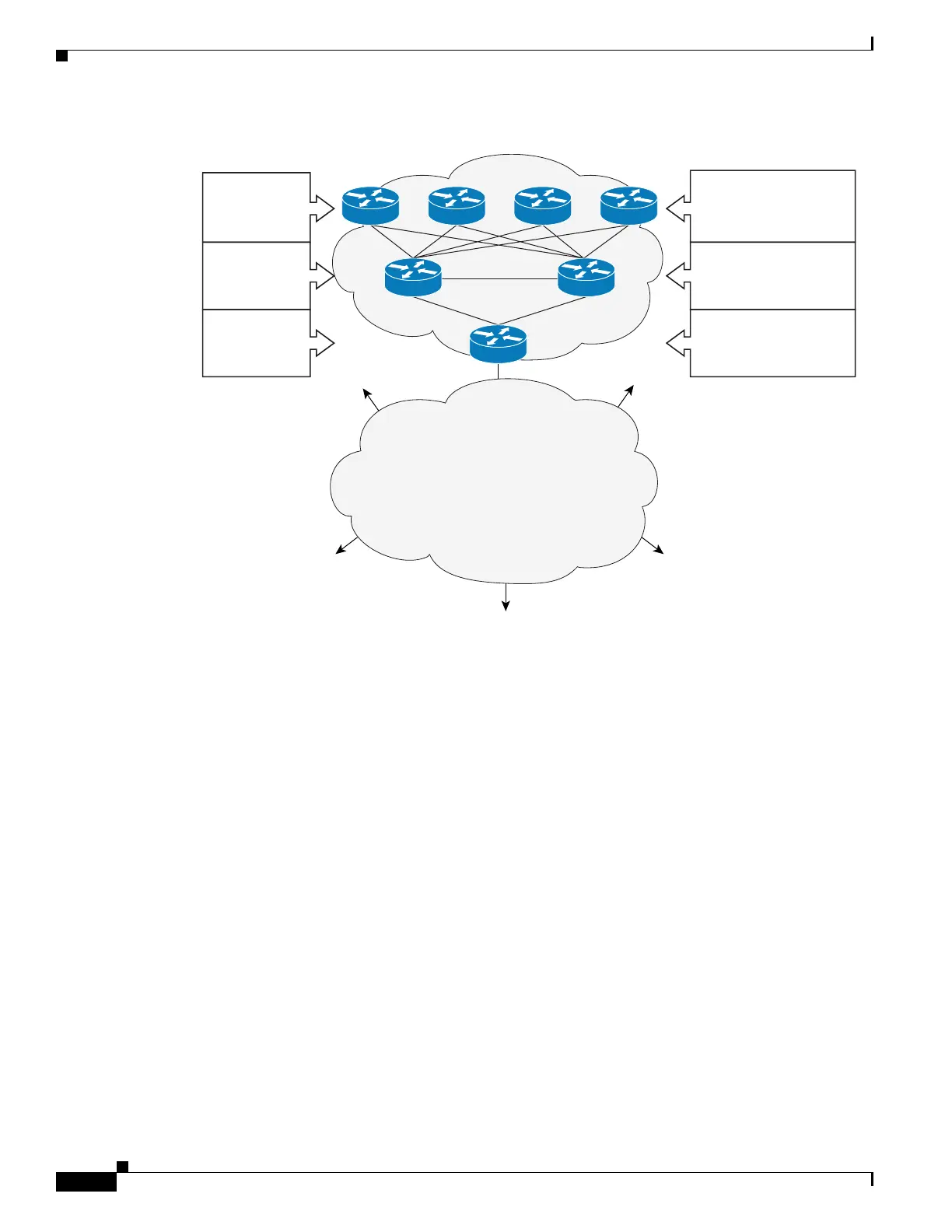

Figure 6-1 Cisco NSF with SSO Network Deployment: Service Provider Networks
Additional levels of availability may be gained by deploying Cisco NSF with SSO at other points in the
network where a single point of failure exists. Figure 6-2 illustrates an optional deployment strategy that
applies Cisco NSF with SSO at the enterprise network access layer. In this example, each access point
in the enterprise network represents another single point of failure in the network design. In the event of
a switchover or a planned software upgrade, enterprise customer sessions continue uninterrupted
through the network in this example.
Service
provider
core
layer
Service provider
distribution
layer
Service
provider
access layer
Cisco NSF with SSO
features may provide
some benefit, but usually
not required
Good position for
NSF-aware
routers
Primary deployment
position for Cisco NSF
with SSO capable-routers
72134
Customers

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
