Cisco Catalyst 4500 Series Administration Guide

8-13
Software Configuration Guide—Release IOS XE 3.6.0E and IOS 15.2(2)E
OL-30933-01
Chapter 8 Configuring Interfaces
Deploying 10-Gigabit Ethernet or Gigabit Ethernet Ports
To select the 10-Gigabit Ethernet or the Gigabit Ethernet SFP uplink port, perform this task:
The following example shows how to enable both 10-Gigabit Ethernet and Gigabit Ethernet SFP uplink
ports on a Catalyst 4510R series switch:
Switch# configure terminal
Switch(config)# hw-module uplink select all
Warning: This configuration mode will place slot 10 in flex slot mode
Note When you modify the uplink mode, you must reboot the switch.
Deploying 10-Gigabit Ethernet or Gigabit Ethernet Ports
To increase the flexibility of X2 ports, the Catalyst 4500 series switch as well as Catalyst 4900M and
Catalyst 4948E support TwinGig Convertor modules. When you plug a TwinGig Convertor module into
an X2 hole, it converts a single X2 hole (capable of holding one pluggable X2 optic) into two SFP holes
(capable of holding two pluggable SFP optics). This enables you to have 10-Gigabit ports and 1-Gigabit
ports on the same line card. It also allows you to use Gigabit ports, and then switch to a 10-Gigabit port,
when needed.
This section includes these topics:
• Port Numbering TwinGig Convertors, page 8-13
• Limitations on Using a TwinGig Convertor, page 8-14
• Selecting X2/TwinGig Convertor Mode, page 8-14
Port Numbering TwinGig Convertors
When a TwinGig Convertor is enabled or disabled, the number and type of ports on the line card change
dynamically. The terminology must reflect this behavior. In Cisco IOS, 10-Gigabit ports are named
10-Gigabit and 1-Gigabit ports are named Gigabit. Starting with Cisco IOS Release 12.2(40)SG, to
avoid having two ports named 10-Gigabit1/1 and Gigabit1/1, the 10-Gigabit and 1-Gigabit port numbers
are independent. For example, for a WS-X4606-10GE-E module with six X2 holes, the X2 ports are
named 10-Gigabit slot-num/<1-6>, and the SFP ports are named Gigabit slot-num/<7-18>.

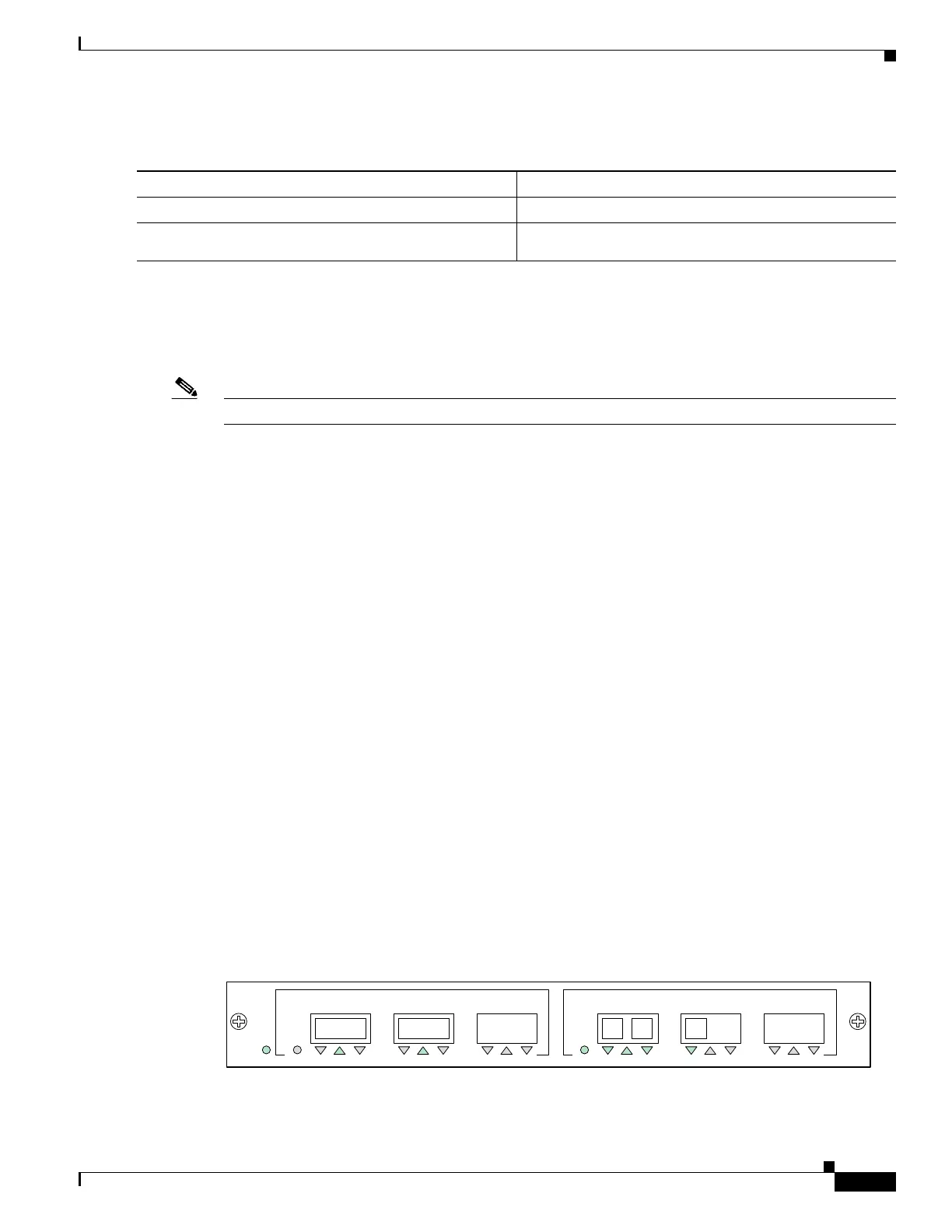

Figure 8-3 Faceplate for WS-X4606-10GE
Command Purpose
Step 1
Switch# configure terminal
Establishes global configuration mode.
Step 2
Switch(config)# hw-module uplink select [all |
gigabitethernet | tengigabitethernet]
Selects the port type to enable.
1X2
SFP
Status
78 9101112
231562
2 3 4X2
SFP 13 14 15 16 17 18
5 6

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
