Chapter 41 Configuring VRF-lite
Configuring VRF-lite for IPv6

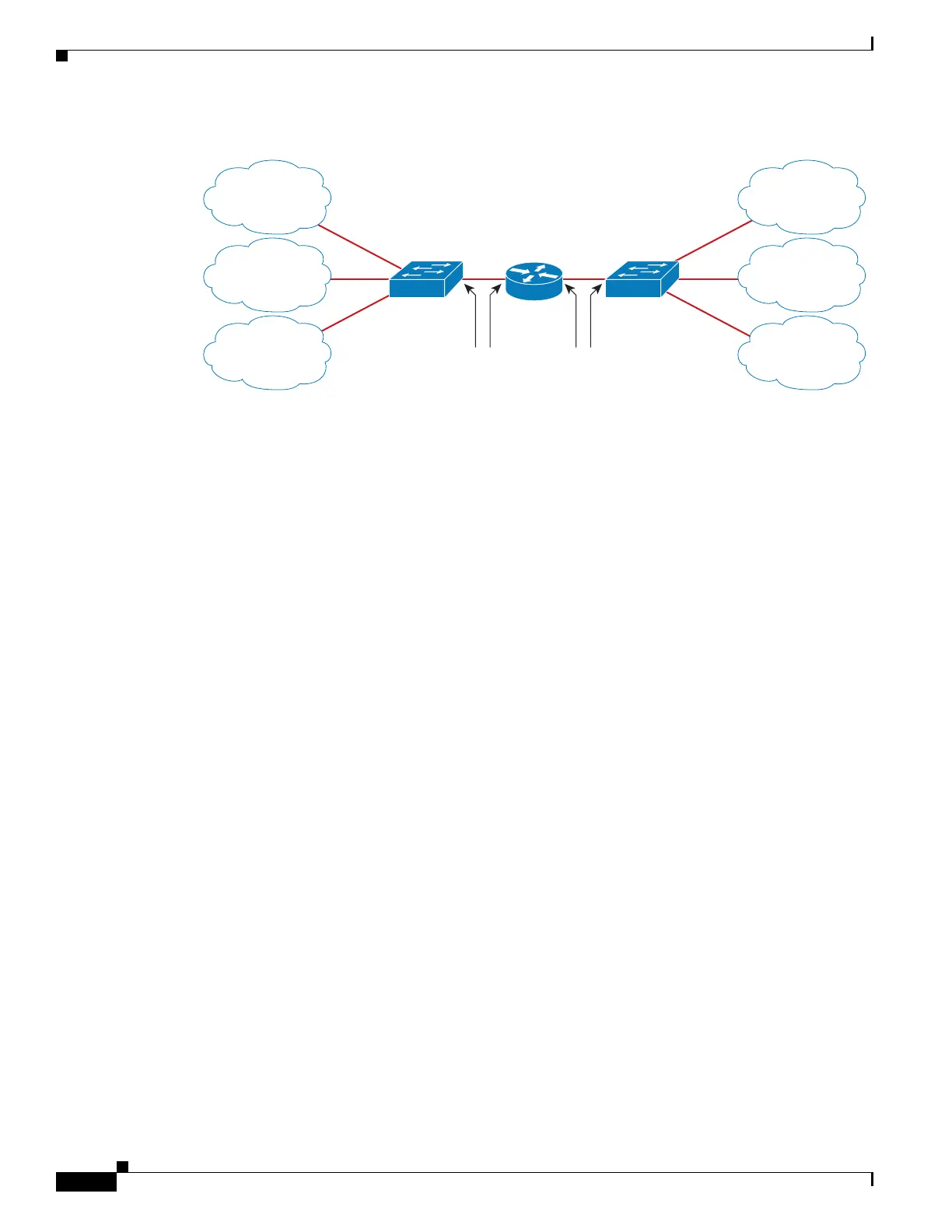

Figure 41-3 VRF-lite Configuration Example
Configuring CE1 Switch
ipv6 unicast-routing
vrf definition v1
rd 100:1
!
address-family ipv6
exit-address-family
!
vrf definition v2
rd 200:1
!
address-family ipv6
exit-address-family
!
interface Vlan100
vrf forwarding v1
no ip address
ipv6 address 1000:1::1/64
ospfv3 100 ipv6 area 0
!
interface Vlan200
vrf forwarding v2
no ip address
ipv6 address 2000:1::1/64
ospfv3 200 ipv6 area 0
!
interface GigabitEthernet 1/0/1
switchport access vlan 100
end
interface GigabitEthernet 1/0/2
switchport access vlan 200
end
interface GigabitEthernet 1/0/24
switchport trunk encapsulation dot1q
switchport mode trunk
no ip address
347831
VPN 1
CE1
1000:1::0/64
2000:1::/64
5000:1::0/64
Gi 1/0/1
Gi 1/0/1Gi 1/0/24 Gi 1/0/24Gi 1/0/2
Gi 1/0/2
Gi 1/0/3
Gi 1/0/1
Gi 1/0/2
Gi 1/0/3
Tr unk Trunk
Catalyst
4500
Catalyst
4500
Catalyst
4500
CE2
PE
VPN 2
Global
VPN 1
VPN 2
Global
