Cisco D9887B User Manual

Dual MPEG over IP Input/ UDP Output Option
78-4043743-01 Rev A 115

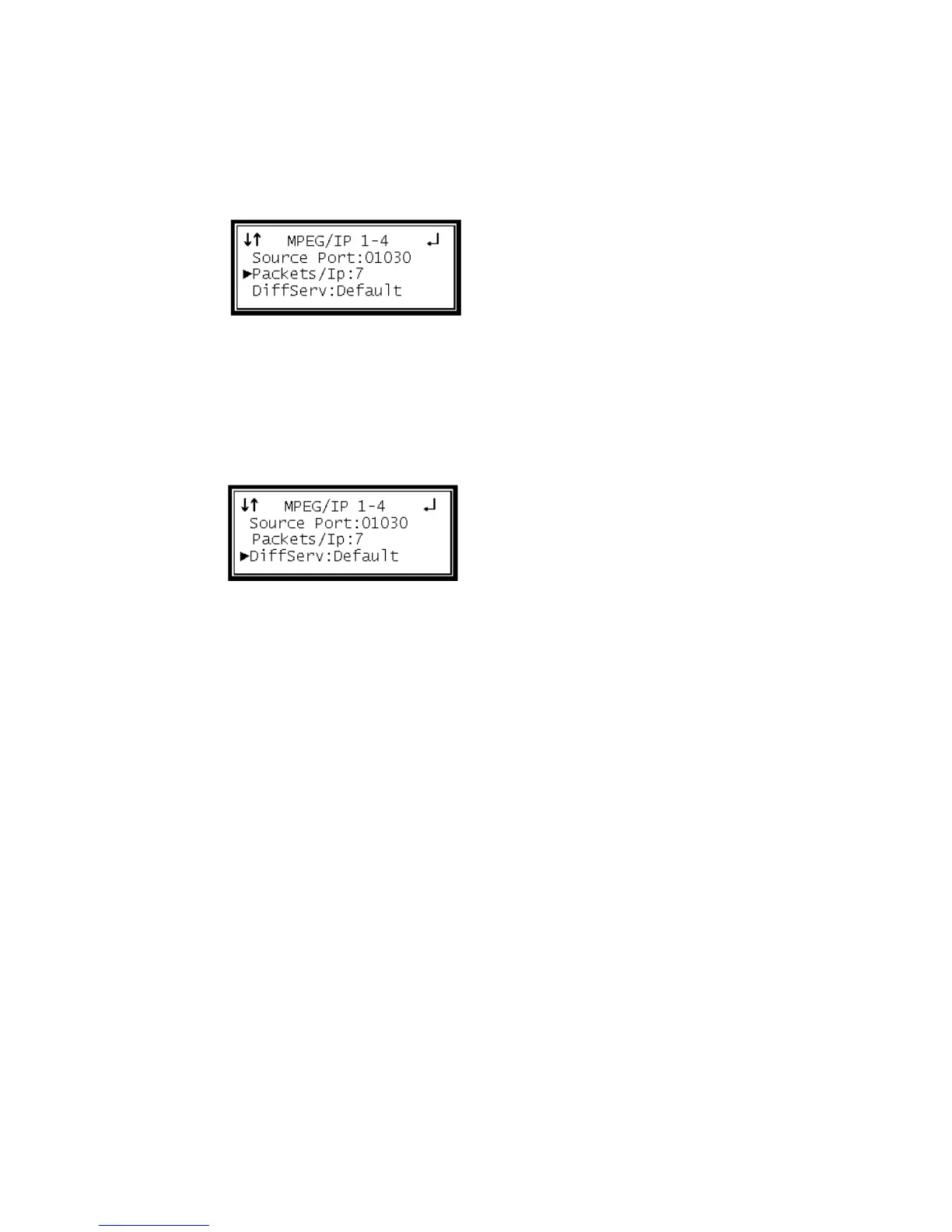

Packets Per Frame
1 Use the Up and Down buttons to move the cursor to "Packets/Ip," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the number of packets per frame (1 –7), then press the
Enter button to save the selection.
Differentiated Services
1 Use the Up and Down buttons to move the cursor to "DiffServ," then press the
Enter button.
2 Use the Left and Right buttons to select the desired differentiated services
("Default", "AF11", "AF12", "AF13", "AF21", "AF22", "AF23", "AF31", "AF32",
"AF33", "AF41", "AF42", "AF43", "EF"), then press the Enter button to save the
selection.
