Cisco D9887B User Manual

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
122 78-4043743-01 Rev A
2 Use the Left and Right buttons to select the column to edit, then use the Up and
Down buttons to set the desired Video PID in the stream, then press the Enter
button to save the PID.

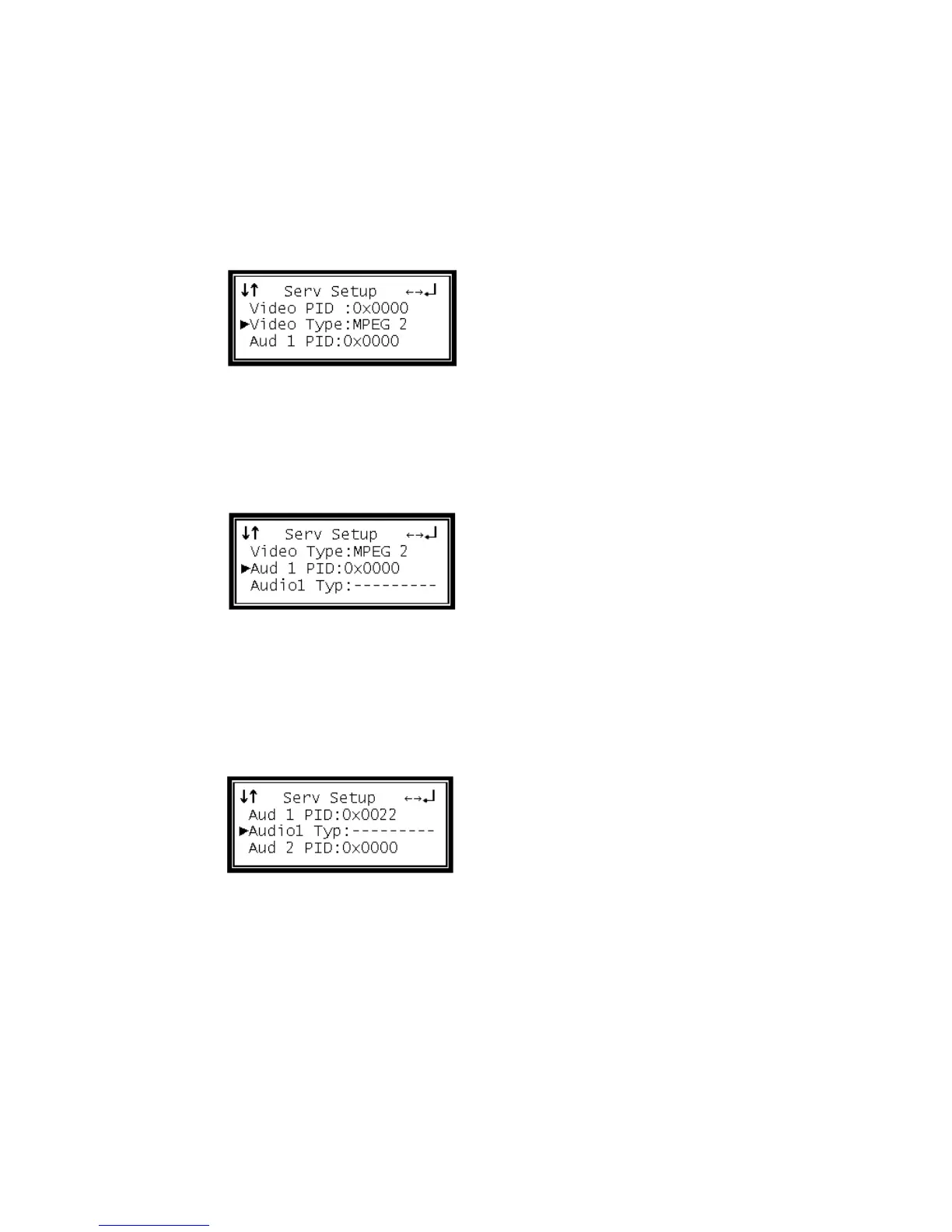

Video Type
1 Use the Up and Down buttons to move the cursor to "Video Type," then press
the Enter button.
2 Use the Up and Down buttons to select the video type ("MPEG 2" or "H.264") on
the PID chosen above, then press the Enter button.
Audio 1 PID
1 Use the Up and Down buttons to move the cursor to "Aud 1 PID," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit, then use the Up and
Down buttons to select the desired Audio PID in the stream, then press the Enter
button to save the PID.
Audio 1 Type
1 Use the Up and Down buttons to move the cursor to "Audio1 Typ," then press
the Enter button.
2 Use the Up and Down buttons to select the audio type ("Dolby AC3", "AAC
ADTS", "AAC LOAS", "Dolby D +", "MPEG 1", "MPEG 2") on the PID chosen
above, then press the Enter button.
