Cisco D9887B User Manual

Video Output (1 RGBHV/YPbPr, 1 Composite) Option
78-4043743-01 Rev A 33

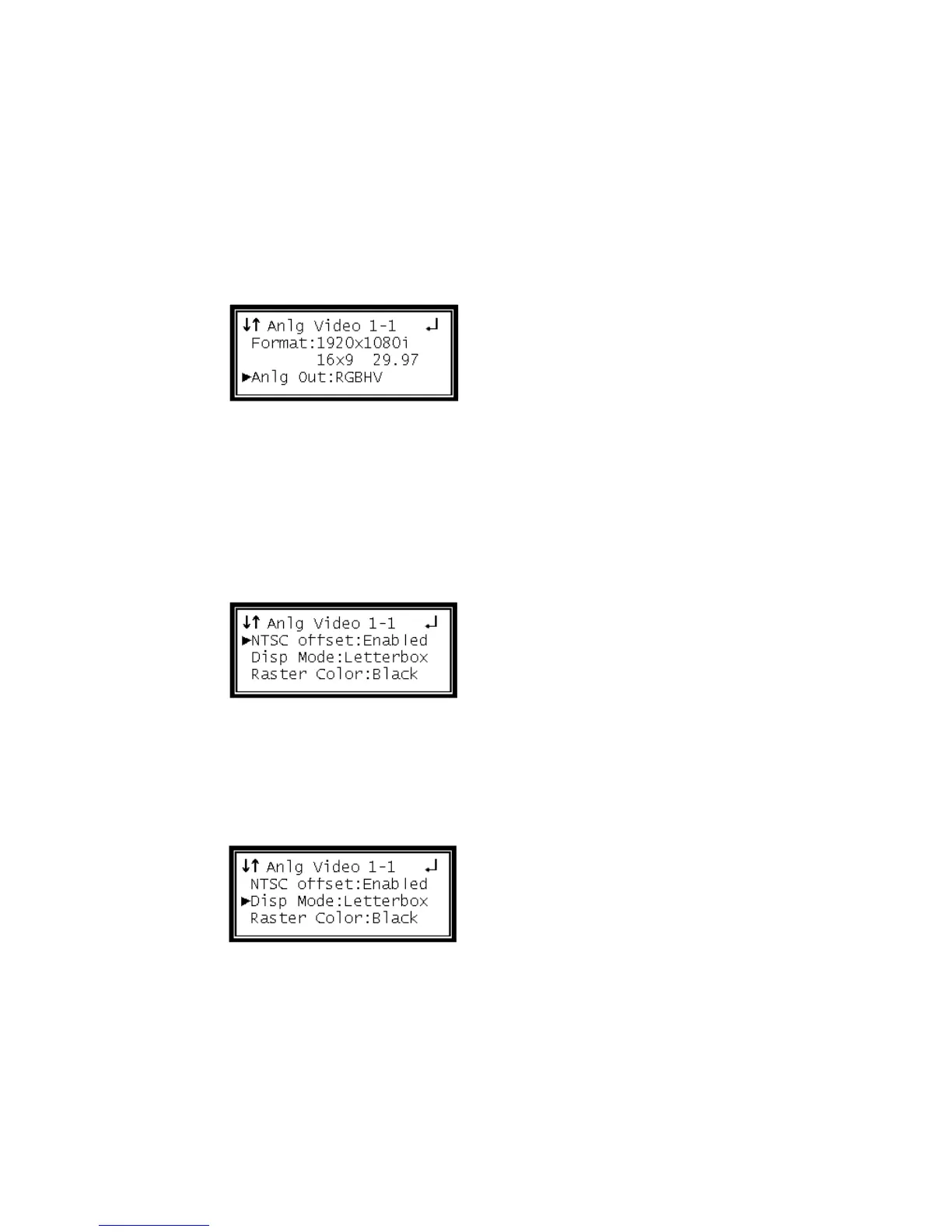

Analog Output Format
Note: If this setting is set incorrectly when using an RGB monitor, the image will
appear green. If this setting is set incorrectly when using a Component monitor,
there will be no video on the monitor.
1 Use the Up and Down buttons to move the cursor to "Anlg Out," then press the
Enter button.
2 Use the Up and Down buttons to select the desired output format ("RGBHV",
"YPbPr"), then press the Enter button to save the selection.
NTSC Ped
When the NTSC Ped is enabled it applies a 7.5 IRE offset to the black level of the
Composite video output.
1 Use the Up and Down buttons to move the cursor to "Format," then press the
Enter button.
2 Use the Up and Down buttons to select "Enabled" or "Disabled," then press the
Enter button to save the selection.
Display Mode
1 Use the Up and Down buttons to move the cursor to "Disp Mode," then press the
Enter button.
2 Use the Up and Down buttons to select either "Letterbox" or "Cropped," then
press the Enter button to save the selection.
