Cisco D9887B User Manual

Dual Video Output (2 SDI, 1 RGBHV/YPbPr/Composite) Option
78-4043743-01 Rev A 55
PAL Waveforms

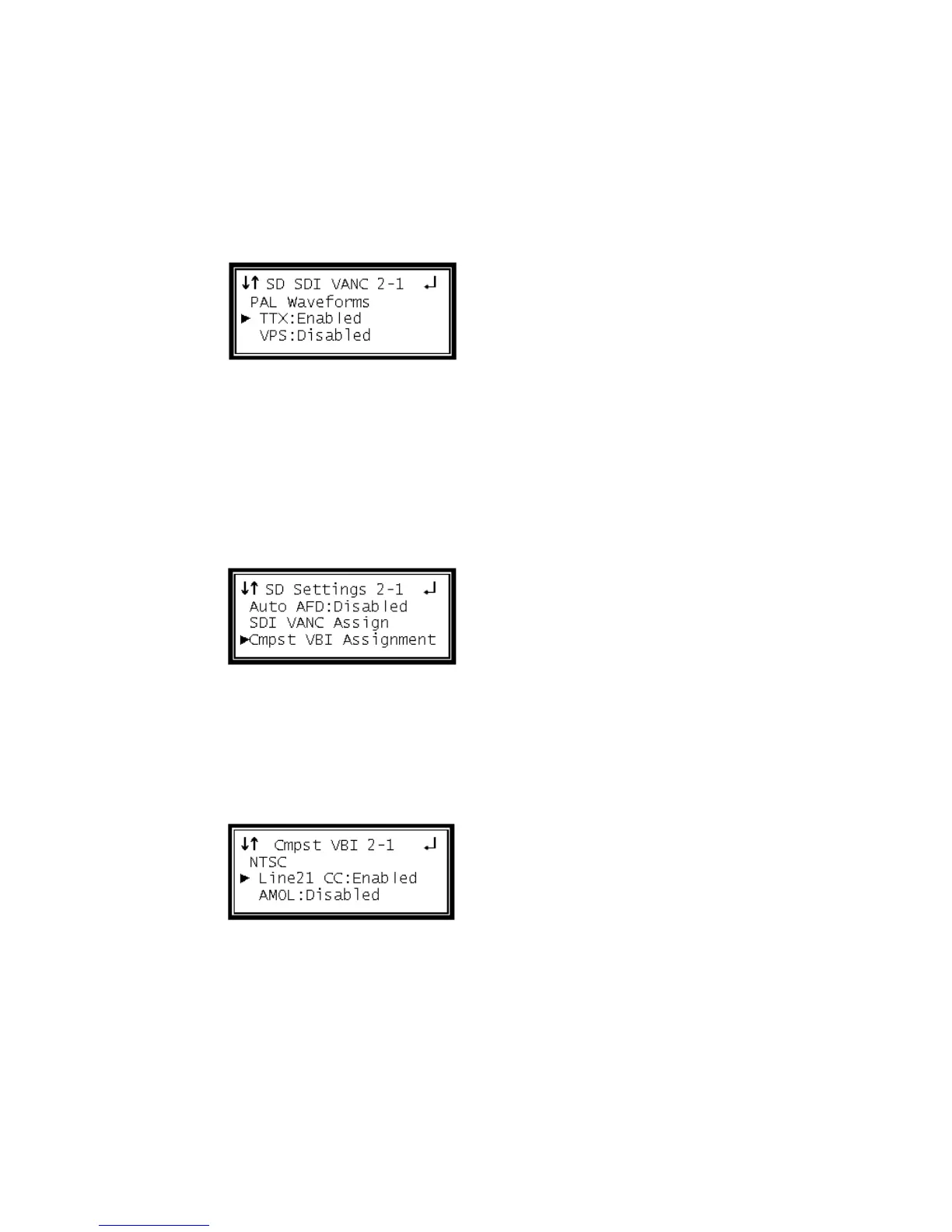

To enable PAL items, use the following steps.
1 Use the Up and Down buttons to move the cursor to "TTX," then press the Enter
button.
2 Use the Up and Down buttons to select "Enabled" or "Disabled," then press the
Enter button to save the selection.
Note: Repeat steps 1-2 above to change VPS and WSS.
Composite VBI Assignment
To edit the Composite VBI Assignment, use the following steps.
1 Use the Up and Down buttons to move the cursor to "Cmpst VBI Assignment,"
then press the Enter button to display the status screen for the VBI.
2 Press the Enter button once more to enter the Edit screen.
NTSC Waveforms
To enable NTSC items, use the following steps.
1 Use the Up and Down buttons to move the cursor to "Line21 CC," then press the
Enter button.
2 Use the Up and Down buttons to select "Enabled" or "Disabled," then press the
Enter button to save the selection.
Note: Repeat steps 1-2 above to change AMOL and TVG2x.
