CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–28 MN-CDM570A

7.4.3.3 Configuration Pages

Use the nested ‘Configuration’ pages to configure all operating parameters for the CDM-

570A/570AL, including the optional Packet Processor, and ODUs when connected.

Click, as applicable, the Modem, LAN, ARP, Routing, Managed Switch, WAN, Overhead,

Utilities, BUC, or LNB tab to continue.

7.4.3.3.1 Configuration | Modem

• Chapter 6. FRONT PANEL OPERATION

• Appendix P. ADAPTIVE CODING AND MODULATION (ACM) OPTION

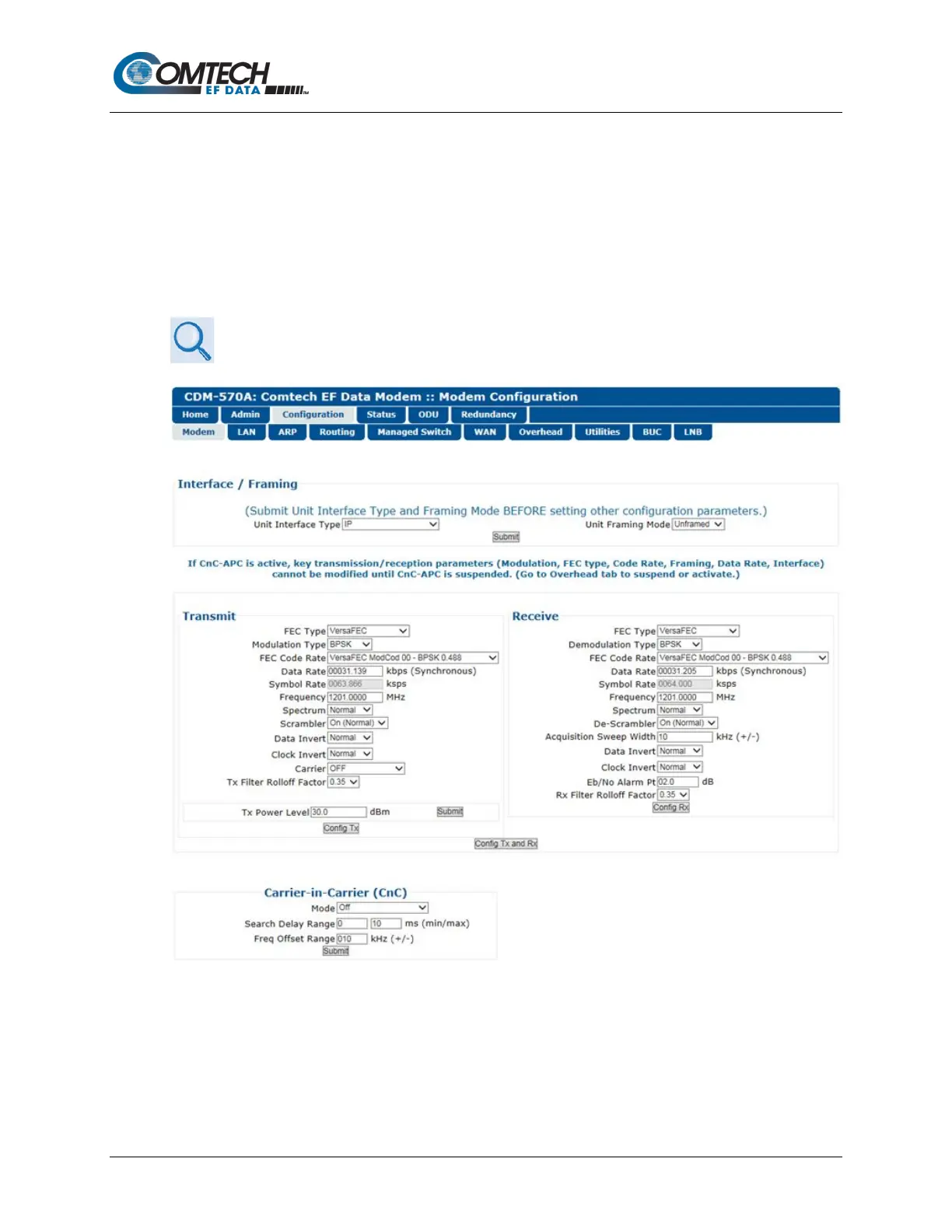

Figure 7-15. Configuration | Modem Page (Non-ACM Modes)
