CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Cable Drawings A–3 MN-CDM570A

A.1.2 EIA-530 to V.35 DCE Conversion Cable

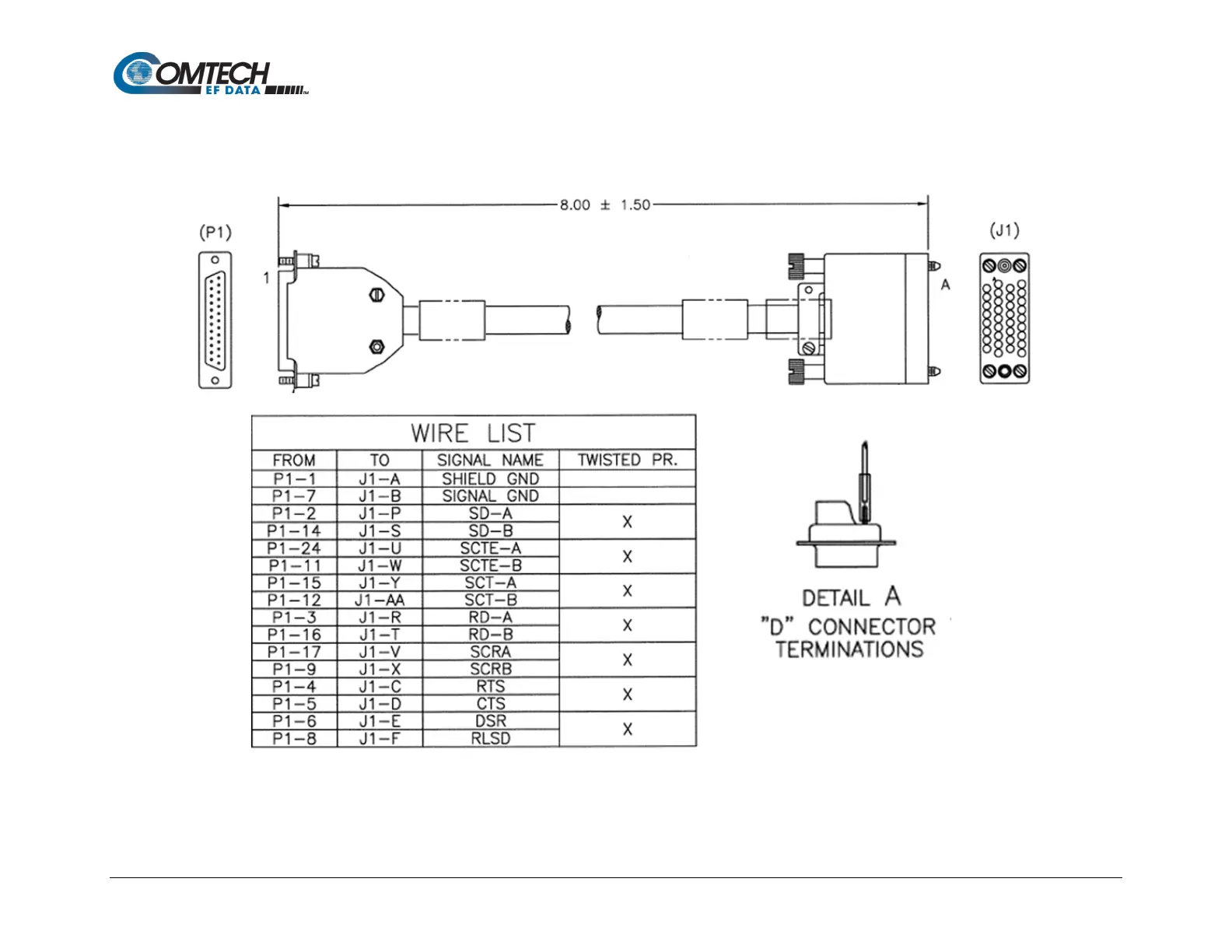

Figure A-2. EIA-530 to V.35 DCE Conversion Cable (CEFD P/N CA/WR12685-1)
