ODU (Transceiver, BUC, LNB) Operation 10–27 MN-CDM570A
10.2.2.1.2 ODU | Config Pages
The appearance of the ‘ODU | Config’ page changes depending on which type of
ODU has been recognized via FSK link for operation with the CDM-570A. Use
this page to configure various ODU operating parameters.
10.2.2.1.2.1 ODU | Config (CSAT-5060)
Figure 10-7 shows the ‘ODU | Config’ page as it appears with the CSAT-5060 configured as the
ODU. Use this page to configure the primary CSAT-5060 Transmit and Receive Parameters.

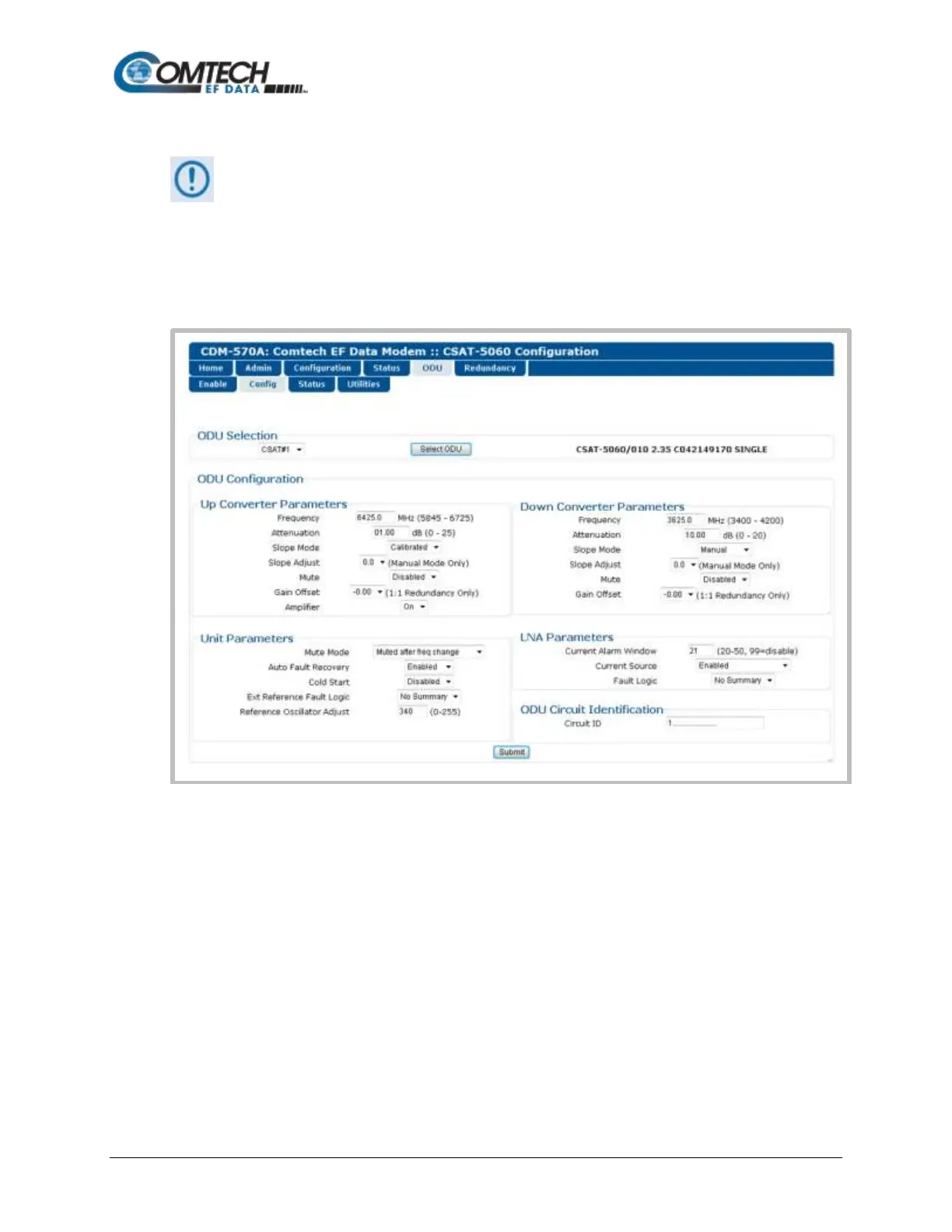

Figure 10-7. ODU | Config Page (CSAT-5060)
ODU Selection
When using redundant ODUs, you may toggle the page between the Online and Offline units by
selecting CSAT #1 or CSAT #2, and then clicking Select ODU. A message identifies the active
unit as ‘ONLINE’ in the right-hand side of the box.
