CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Cable Drawings A–2 MN-CDM570A

A.1.1 EIA-530 to EIA-422/449 Data Cable

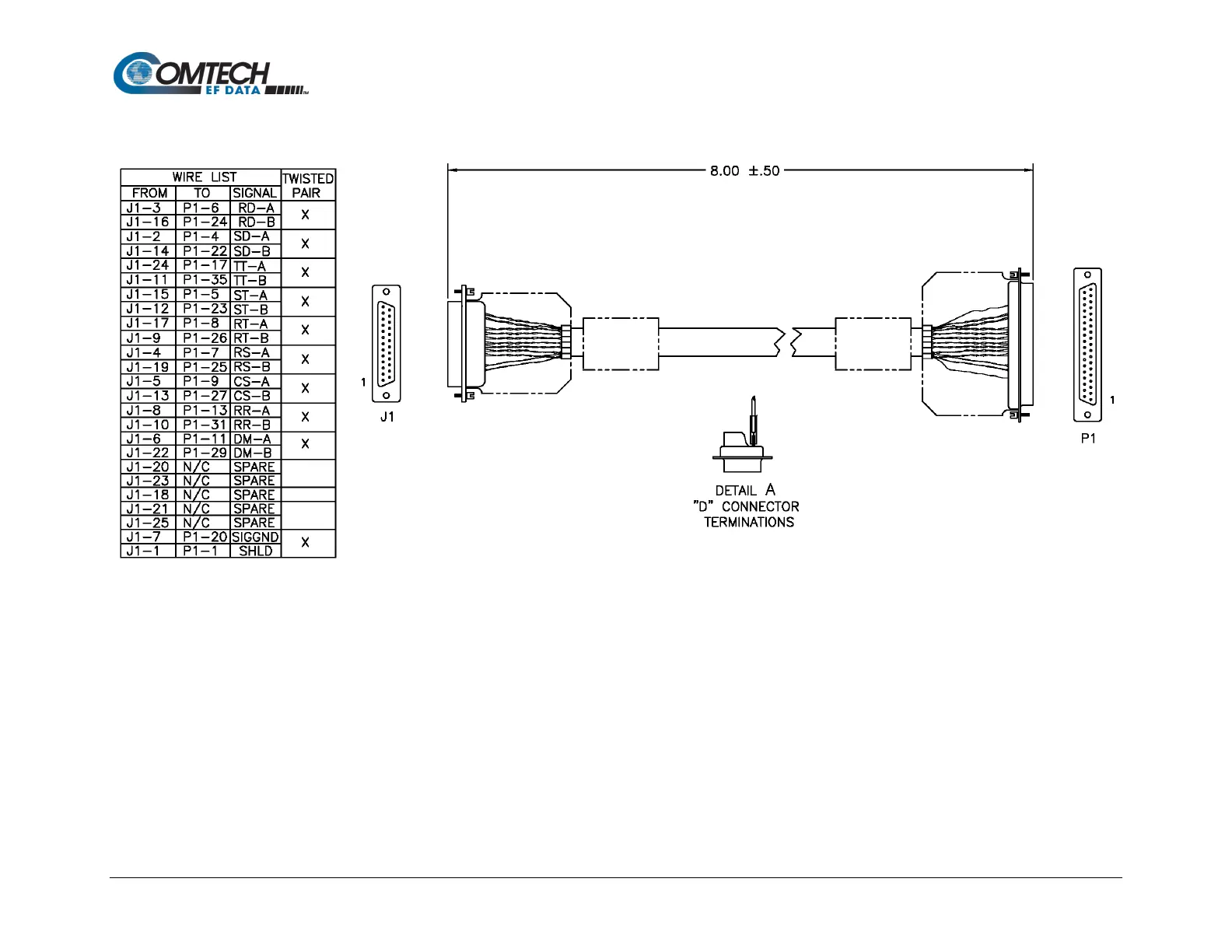

Figure A-1. EIA-530 to EIA-422/449 DCE Conversion Cable (CEFD P/N CA/WR12753-1)
