CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Optional Packet Processor - Serial/Telnet CLI Operation 9–50 MN-CDM570A

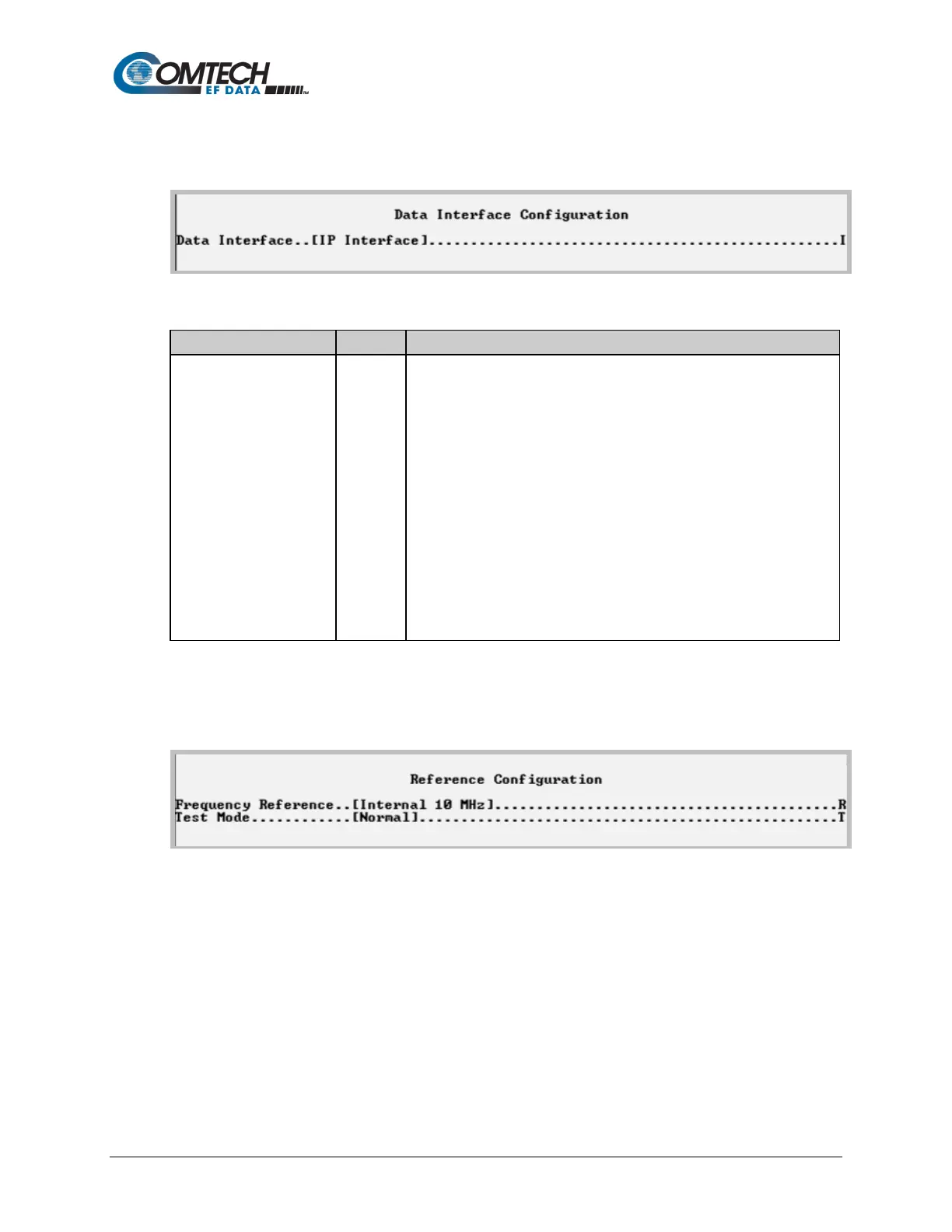

9.3.8.1.4 Satellite Modem > Configuration > Data Interface Configuration
Open the nested Data Interface Configuration page from the Configuration page.
Figure 9-33. Data Interface Configuration
Select the Data Interface:
1 – EAI-422/EAI-530 DCE
2 – V.35 DCE
3 – EAI-232(sync)
4 – G.703 T1 AMI
5 – G.703 T1 B8ZS
6 – G.703 E1 Unbal AMI
7 – G.703 E1 Unbal HDB3
8 – G.703 E1 Bal AMI
9 – G.703 E1 Bal HDB3
10 – IP Interface
11 – IP-ACM
NOTE: You must set the data interface as 10 – IP Interface or 11 – IP-
ACM for IP traffic to pass over the satellite.
9.3.8.1.5 Satellite Modem > Configuration > Reference Configuration
Open the nested Reference Configuration page from the Configuration page.
Figure 9-34. Reference Configuration
