CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–68 MN-CDM570A

7.4.3.4.4.2 Status | Traffic Statistics | Router

Use this page to review the cumulative routed, dropped, or filtered packets as processed by the

modem while in Router Mode.

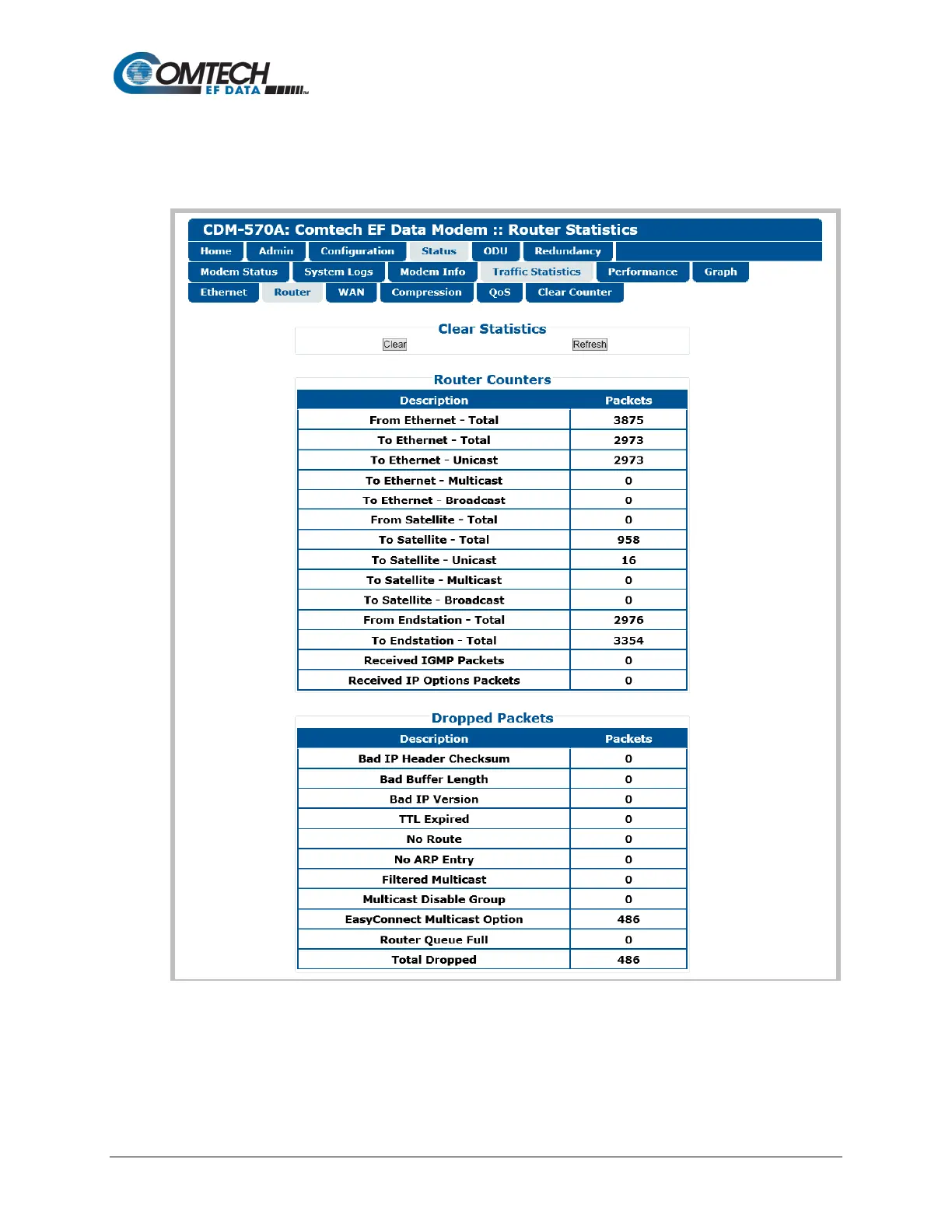

Figure 7-40. Status | Traffic Statistics | Router Page (upper section)
