CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Optional Packet Processor - Serial/Telnet CLI Operation 9–60 MN-CDM570A

9.3.8.2.5 Satellite Modem > Monitor > CnC Monitor

Open the nested CnC Monitor page from the Monitor page.

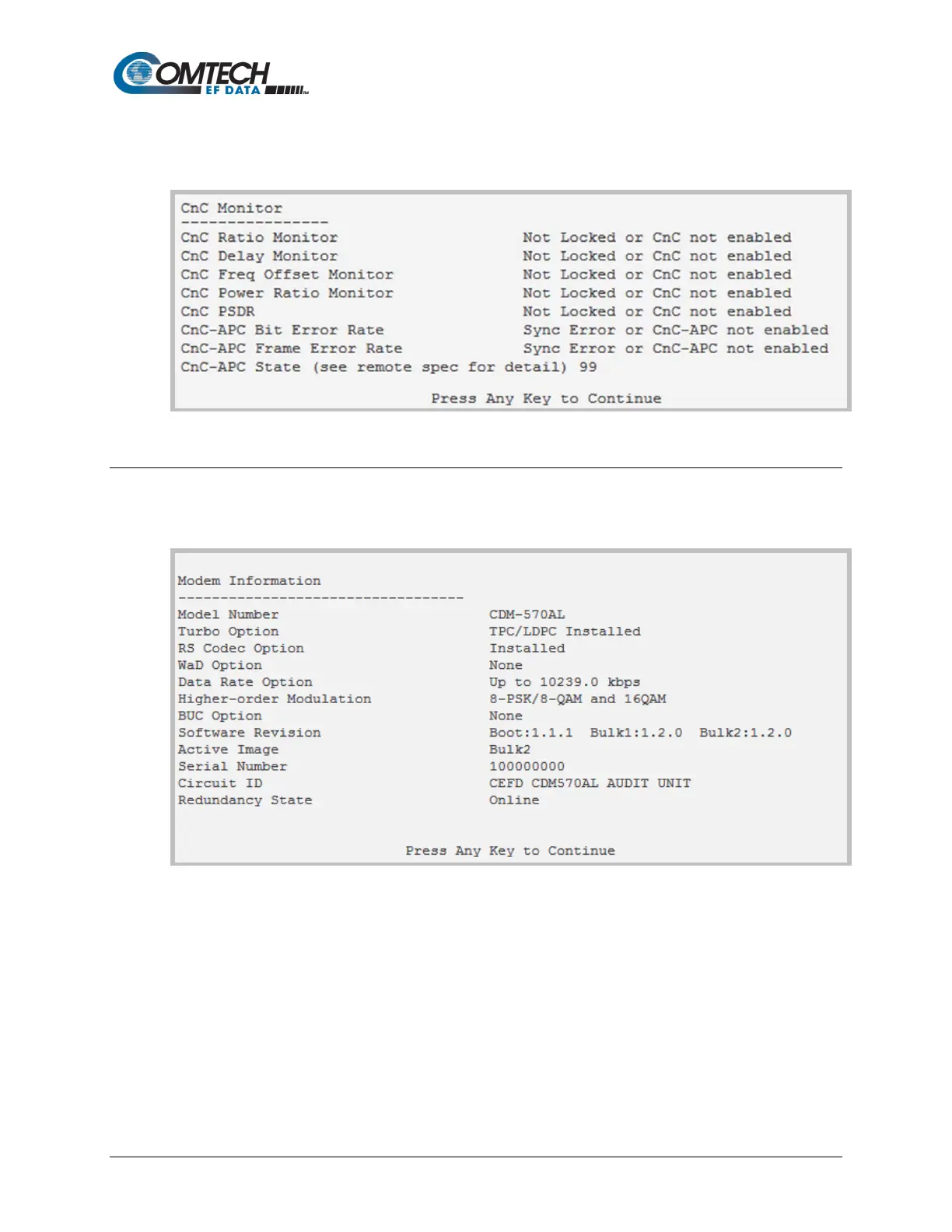

Figure 9-45. CnC Monitor

9.3.8.3 Satellite Modem > Information

Open the nested Information page from the Satellite Modem page.

Figure 9-46. Satellite Modem Information
