CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Optional Packet Processor - Serial/Telnet CLI Operation 9–74 MN-CDM570A

9.3.10.2.3 Operations and Maintenance > Statistics Menu> Ethernet

Statistics

Open the nested Ethernet Statistics page from the Statistics pages. These read-only pages

present the total packets received and transmitted for the Ethernet Port of the Packet Processor.

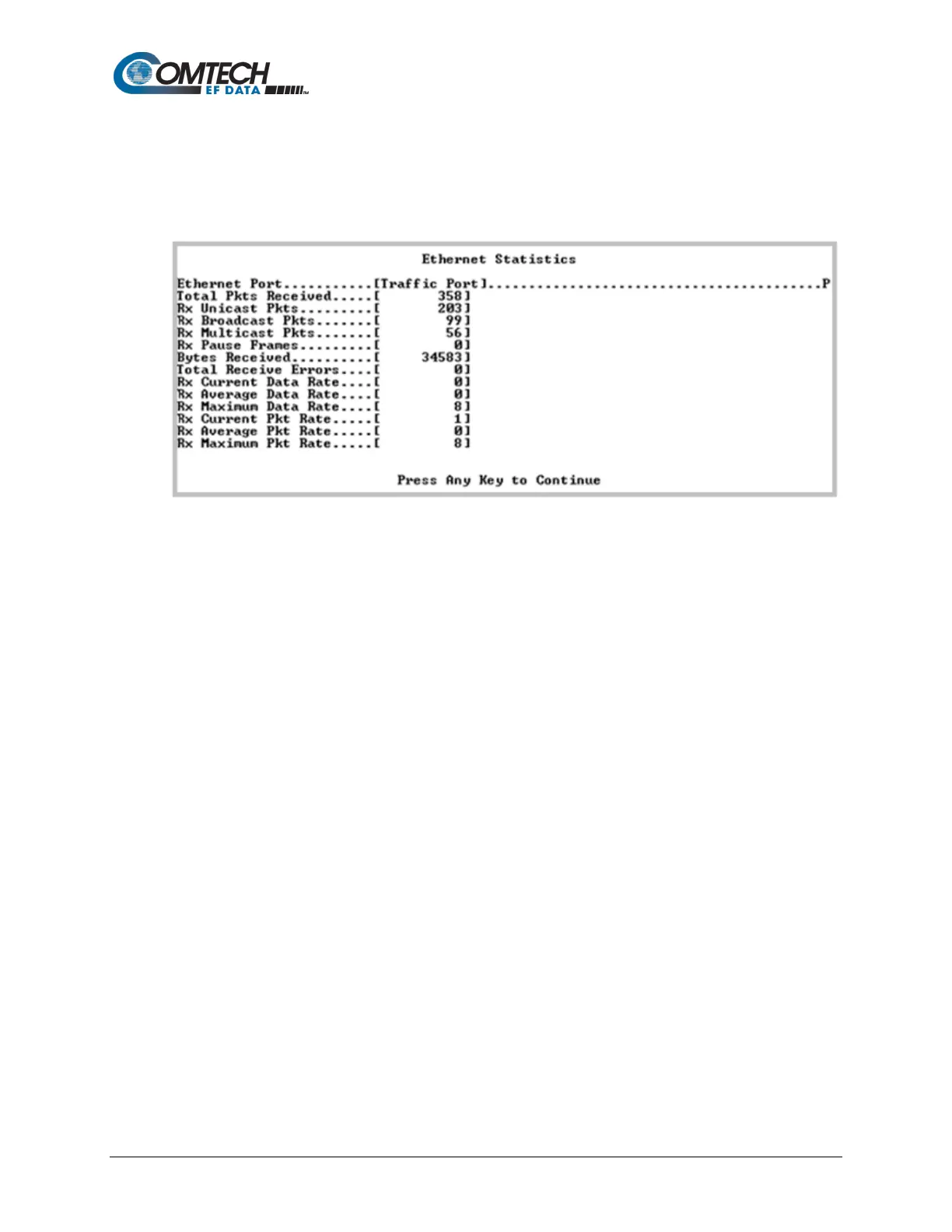

Figure 9-56. Ethernet Statistics – Initial Page
