ODU (Transceiver, BUC, LNB) Operation 10–30 MN-CDM570A
LNA Parameters
LNA Power Enable – Select On or Off from the drop-down list.
LNA Fault Logic – Select Summary or No Summary from the drop-down list.
Unit Parameters
AGC (Automatic Gain Control) – Select On or Off from the drop-down list.
Reference Oscillator Adjust – Enter a value from 0 to 255.
Circuit ID – Enter a Circuit Identification name of up to 24 alphanumeric characters.
Lock Mode – Select On or Off from the drop-down list.
Click [Submit] to save any changes made to this page.
10.2.2.1.3 ODU | Status Pages
The appearance of the ‘ODU | Status’ page changes depending on which type of
ODU has been recognized via FSK link for operation with the CDM-570A. These
pages provide read-only status windows pertaining to the current operating
condition for either the CSAT-5060 or the KST-2000A/B ODUs.
10.2.2.1.3.1 ODU | Status (CSAT-5060)
Figure 10-9 shows the ‘ODU | Status’ page as it appears with the CSAT-5060 configured as the
ODU. Use this page to review read-only status information pertaining to the CSAT-5060
Maintenance Parameters; ODU Alarms; and the number of Unread Events in the Events Log.

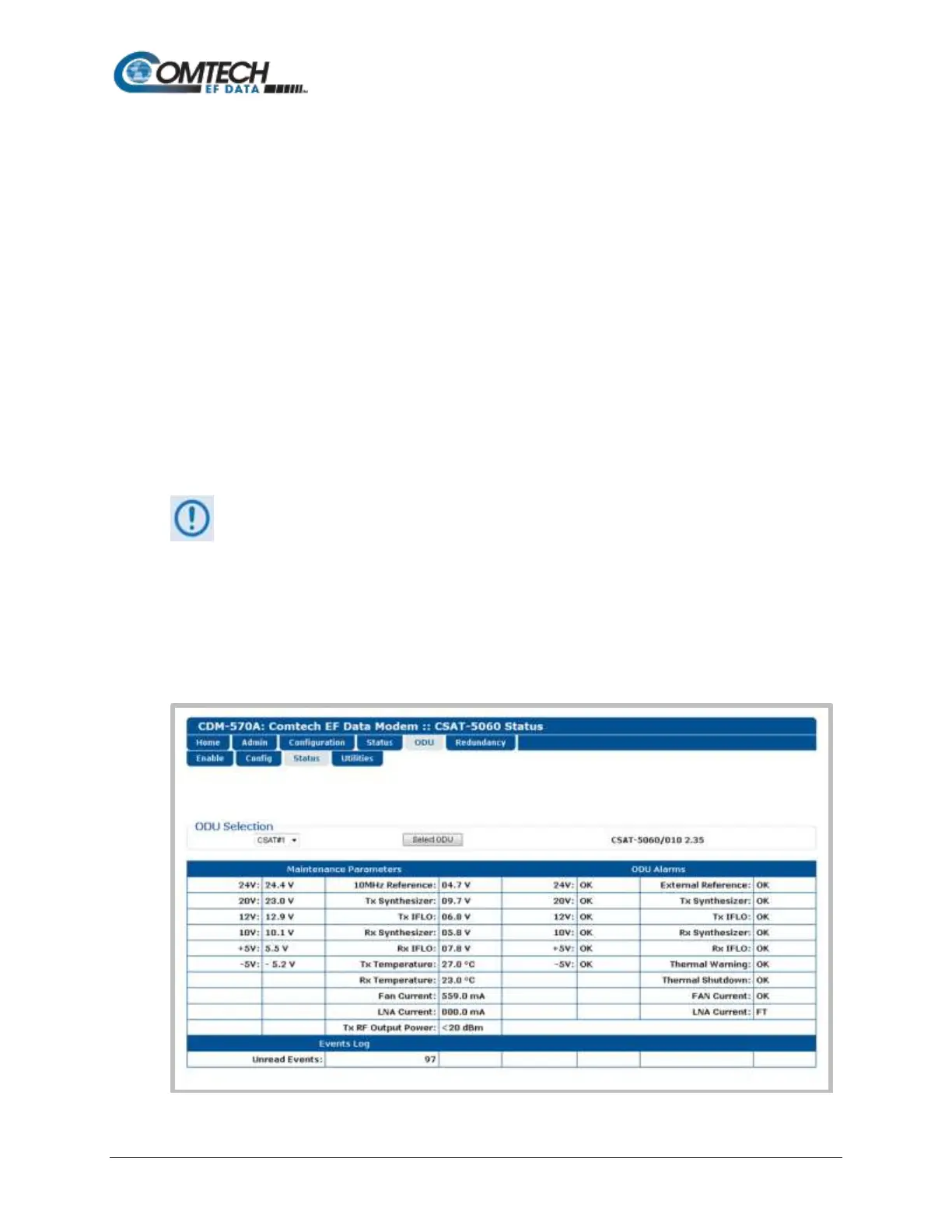

Figure 10-9. ODU | Status Page (CSAT-5060)
