CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
ODU (Transceiver, BUC, LNB) Operation 10–34 MN-CDM570A
10.2.2.1.4.2 ODU | Utilities (KST-2000A/B)

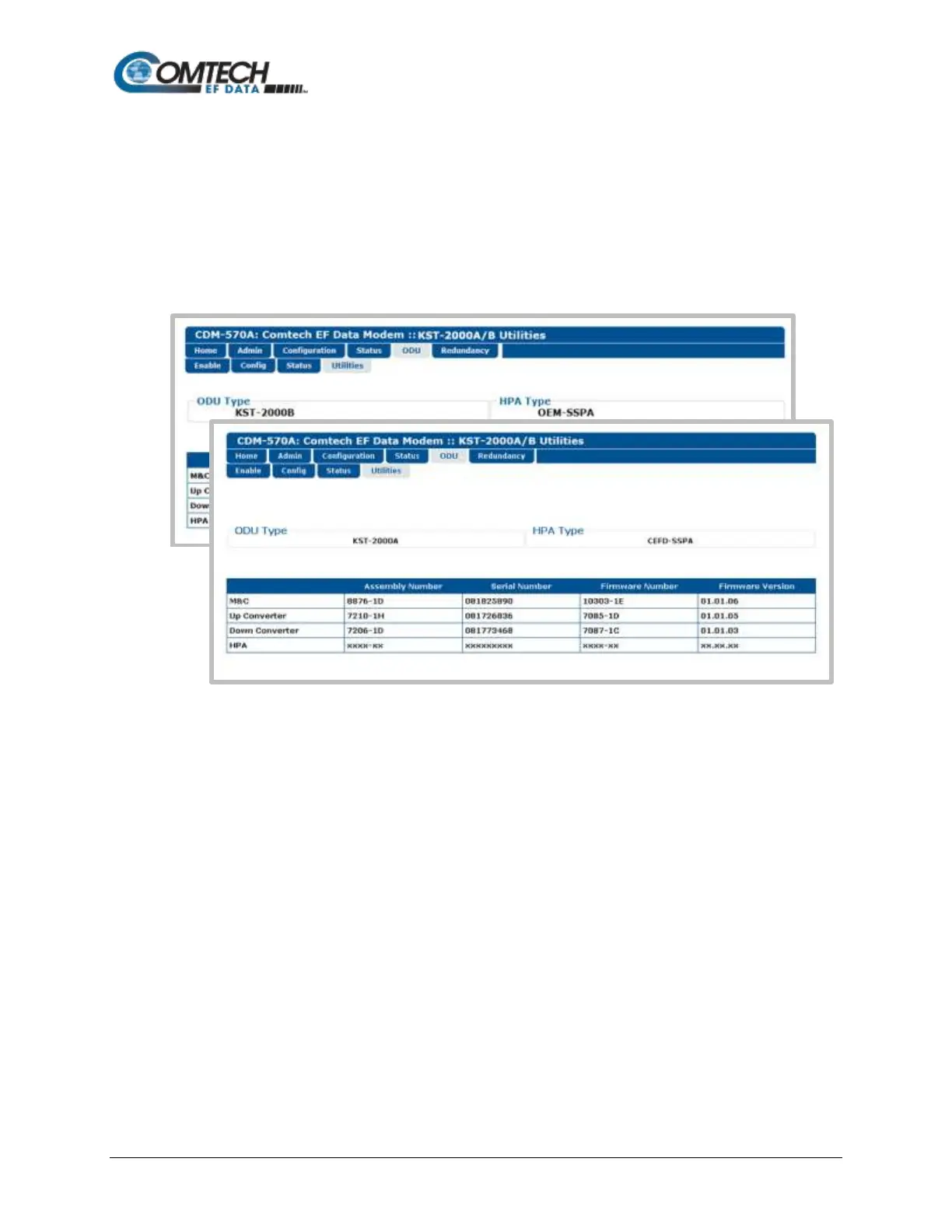

Figure 10-12 shows the ‘ODU | Utilities’ page, as it appears with the KST-2000A/B configured as
the ODU. The message bar at top identifies the ODU Type and HPA Type (in this example,
KST-2000A and CEFD-SSPA, respectively).
Use this page to review the read-only status information that identifies the configured ODU
chassis’ installed component assembly numbers, serial numbers, firmware numbers, and
firmware versions.
Figure 10-12. ODU | Utilities Page (KST-2000A/B)
