CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–73 MN-CDM570A

7.4.3.4.4.6 Status | Traffic Statistics | Clear Counter

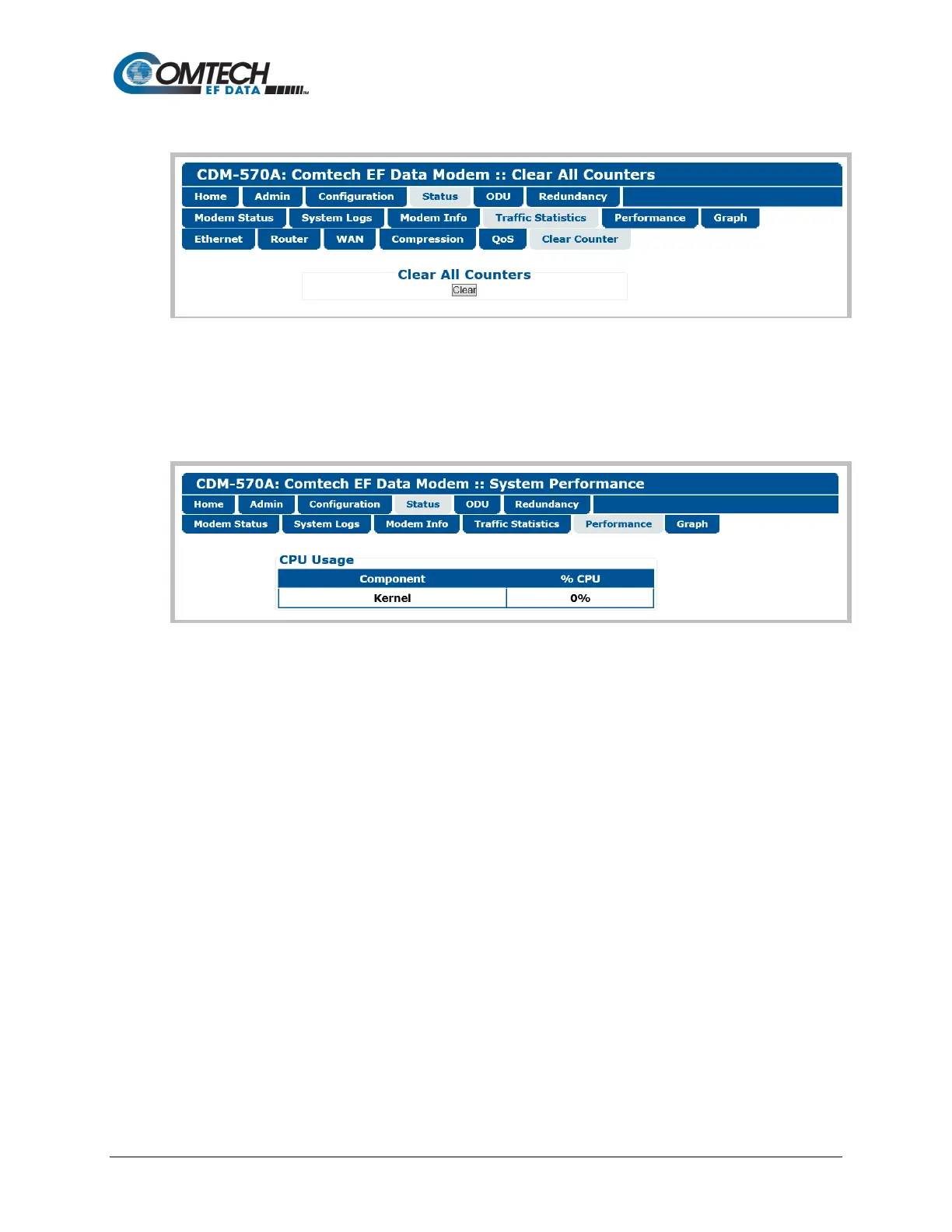

Figure 7-45. Status | Traffic Statistics | Clear Counter Page

Click [Clear] to erase all existing information and reset the statistics compilation buffers from all

Traffic Statistics pages (Ethernet, Router, WAN, Compression, and QoS).

7.4.3.4.5 Status | Performance

Figure 7-46. Status | Performance Page

CPU Usage

This read-only page displays IP Module CPU Utilization as a percentage(%).
