Do these steps to finish:
Step
Task
5
From User PC 1:
• Ping 172.16.10.1 (CDM-IP 1);
• Ping 172.16.10.2 (CDM-IP 2);
• Ping 172.16.10.12 (User PC 2).
6
From User PC 2:
• Ping 172.16.10.2 (CDM-IP 2);
• Ping 172.16.10.1 (CDM-IP 1);
• Ping 172.16.10.11 (User PC 1).
Do not enable IF Loopback (or link the Tx to Rx by a BNC cable or satellite link)
on a CDM-IP modem operating in Managed Switch Mode when connected to a
LAN. In this configuration, Managed Switch Mode will resend all Layer 2
broadcast packets and cause a “broadcast storm” on the LAN.
D.2.6 Configuring a Router Mode Point-to-Point System
The procedures outlined in this section result in the configuration shown in Figure D-4.

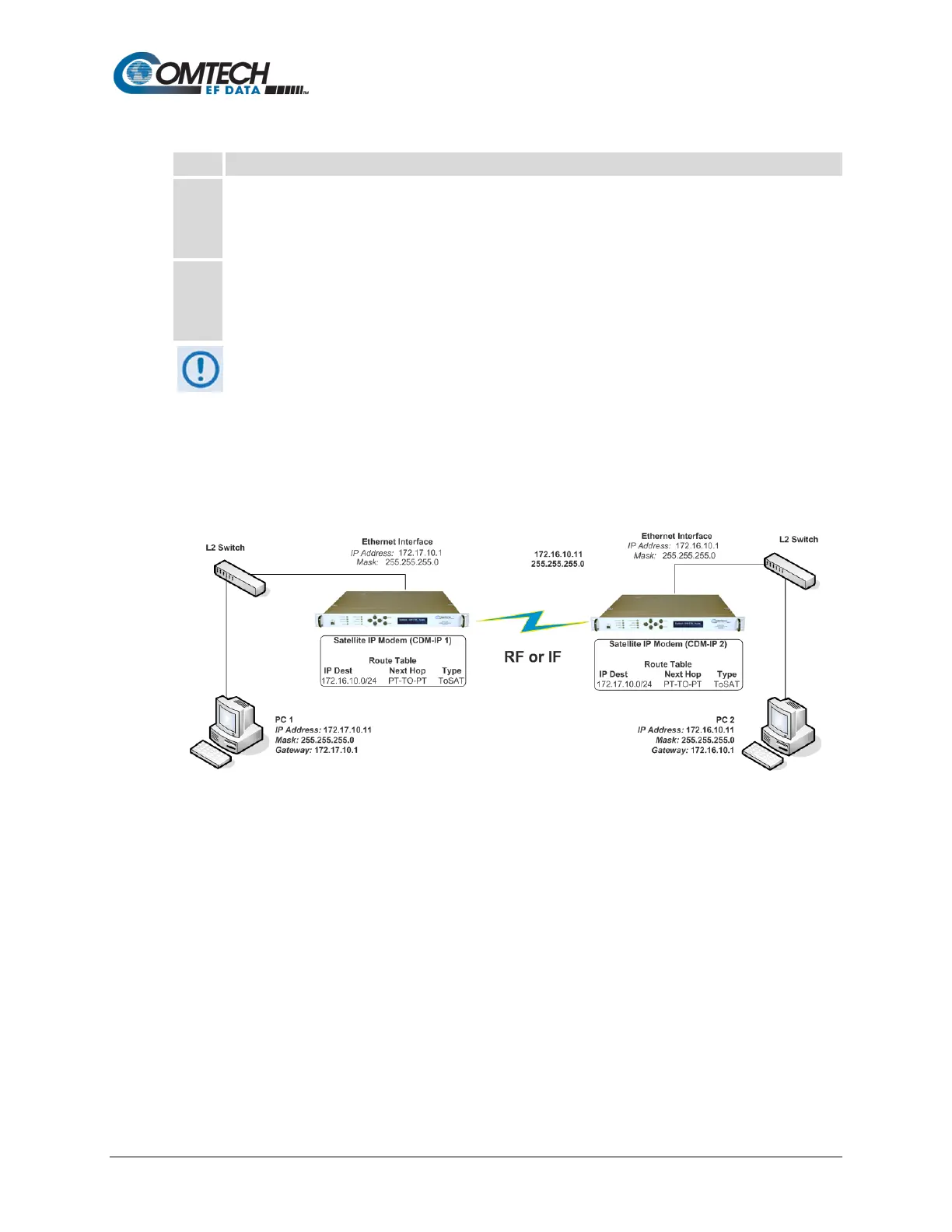

Figure D-4. Router Mode Point-to-Point System Configuration
