D.1.3.5 CDM-570A HTTP (Web Server) Interface

Sect. 7.4 CDM-570A HTTP (Web Server) Interface (Chapter 7. ETHERNET-BASED

REMOTE PRODUCT MANAGEMENT)

The embedded HTTP application (Figure D-2) provides an easy-to-use interface designed for

optimal performance when using Microsoft’s Internet Explorer Version 9.0 or higher. The interface

features enhanced functionality when the CDM-570A/570AL is equipped with the Packet

Processor.

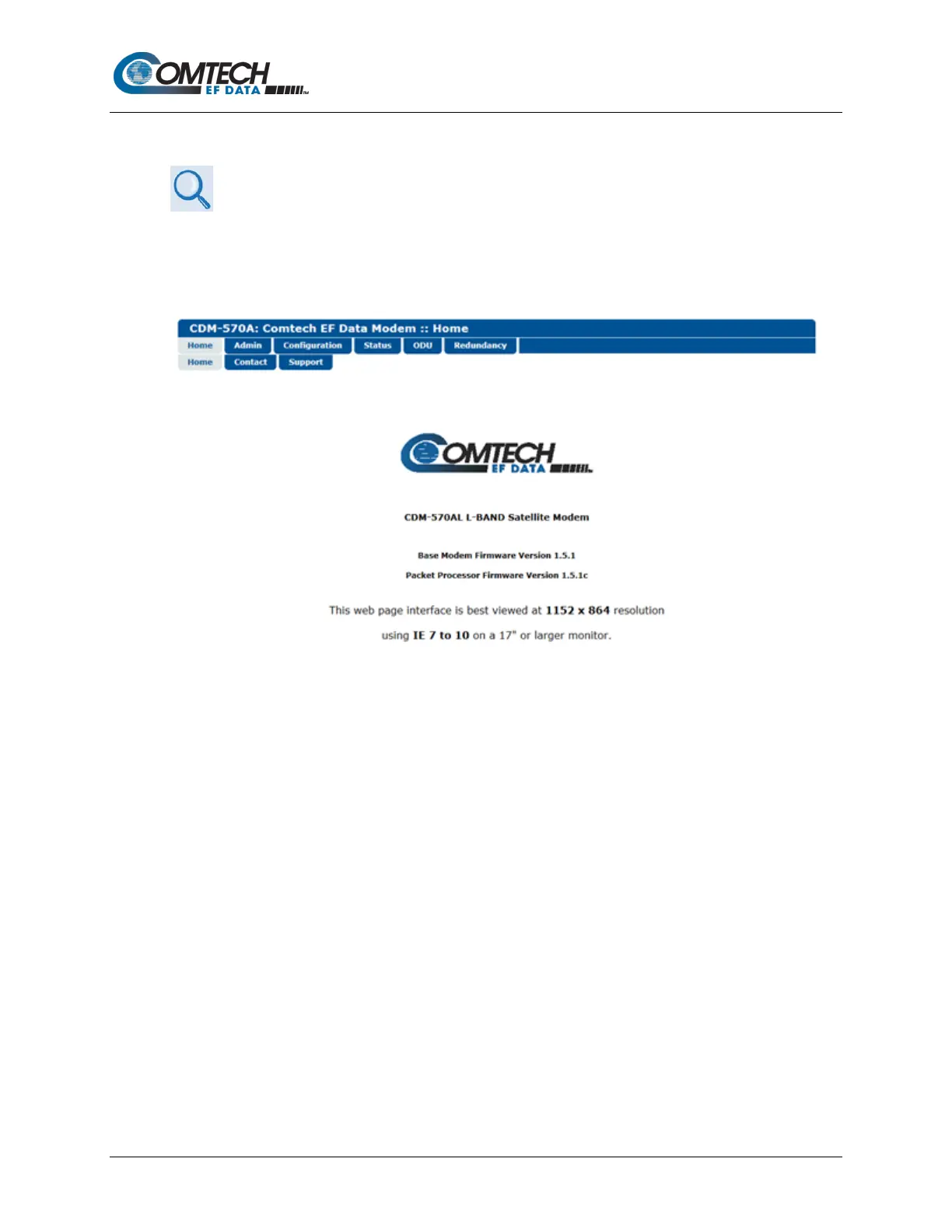

Figure D-2. CDM-570A HTTP (Web Server) Interface Home Page
