7.4.3.4.4.3 Status | Traffic Statistics | WAN

Use this page to review the cumulative WAN statistics.

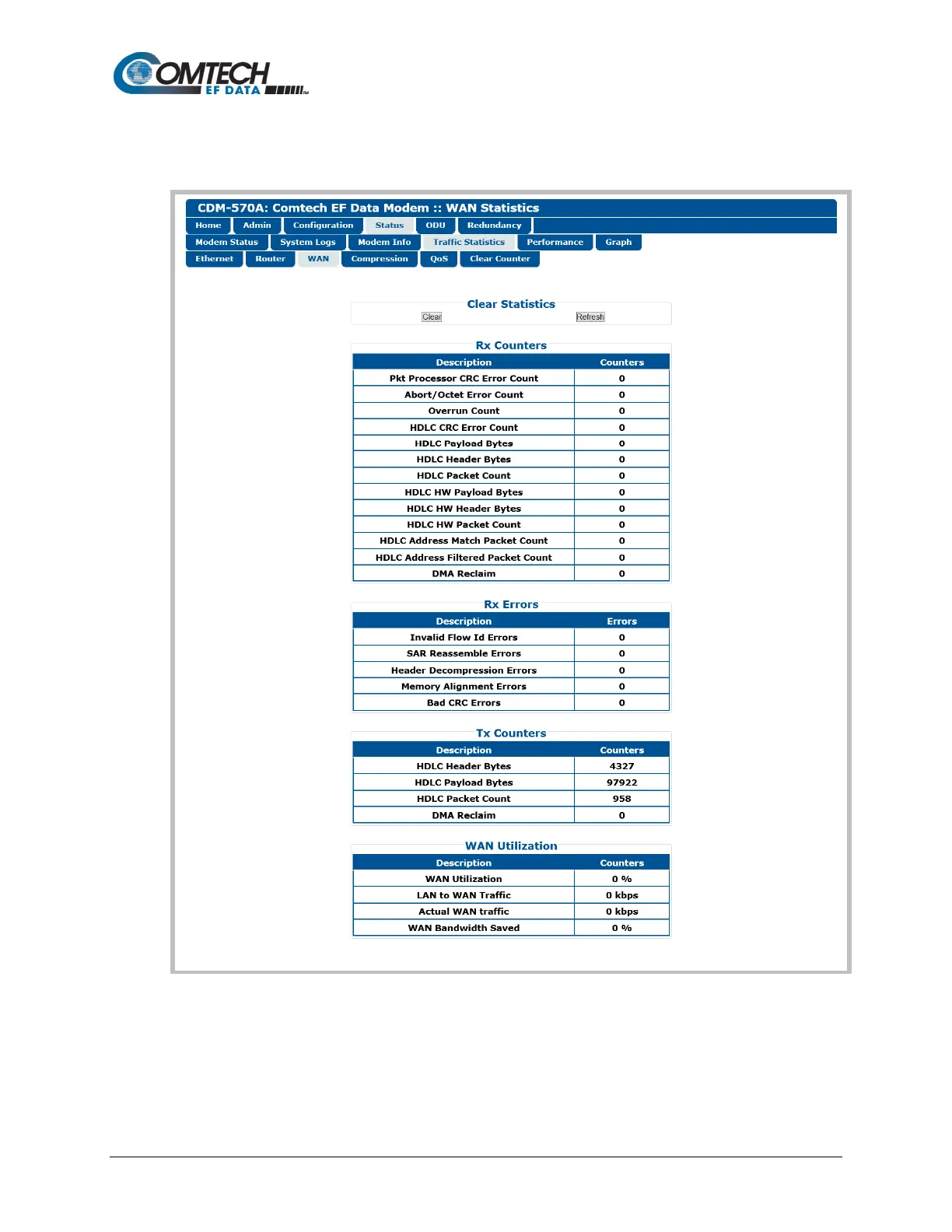

Figure 7-42. Status | Traffic Statistics | WAN Page

Clear Statistics

Click [Clear] to erase all existing information and reset the statistics counters. Otherwise, click

[Refresh] to update the page with the latest polled data.
