3.3 Modem Ground, Power, and Fuse Connections
3.3.1 Chassis Ground Interface
CAUTION – CORRECT GROUNDING PROTECTION IS REQUIRED TO PREVENT
PERSONAL INJURY AND EQUIPMENT DAMAGE.
THIS MODEM IS DESIGNED FOR CONNECTION TO A POWER SYSTEM THAT
HAS SEPARATE GROUND, LINE, AND NEUTRAL CONDUCTORS. THE
EQUIPMENT IS NOT
DESIGNED FOR CONNECTION TO A POWER SYSTEM
THAT HAS NO DIRECT CONNECTION TO GROUND. IT IS THEREFORE
IMPERATIVE
DURING INSTALLATION, CONFIGURATION, AND OPERATION
THAT YOU PROPERLY GROUND THE MODEM USING THE GROUND STUD
PROVIDED ON THE MODEM REAR PANEL AND THAT THE MODEM IS
ALWAYS CONNECTED TO THE PROTECTIVE EARTH.
(TOP) Standard AC Chassis
(MIDDLE) Optional -24V or -48V DC Chassis
(BOTTOM) CDMR-570AL Reduced Chassis Depth Modem -24V or -48V DC Chassis

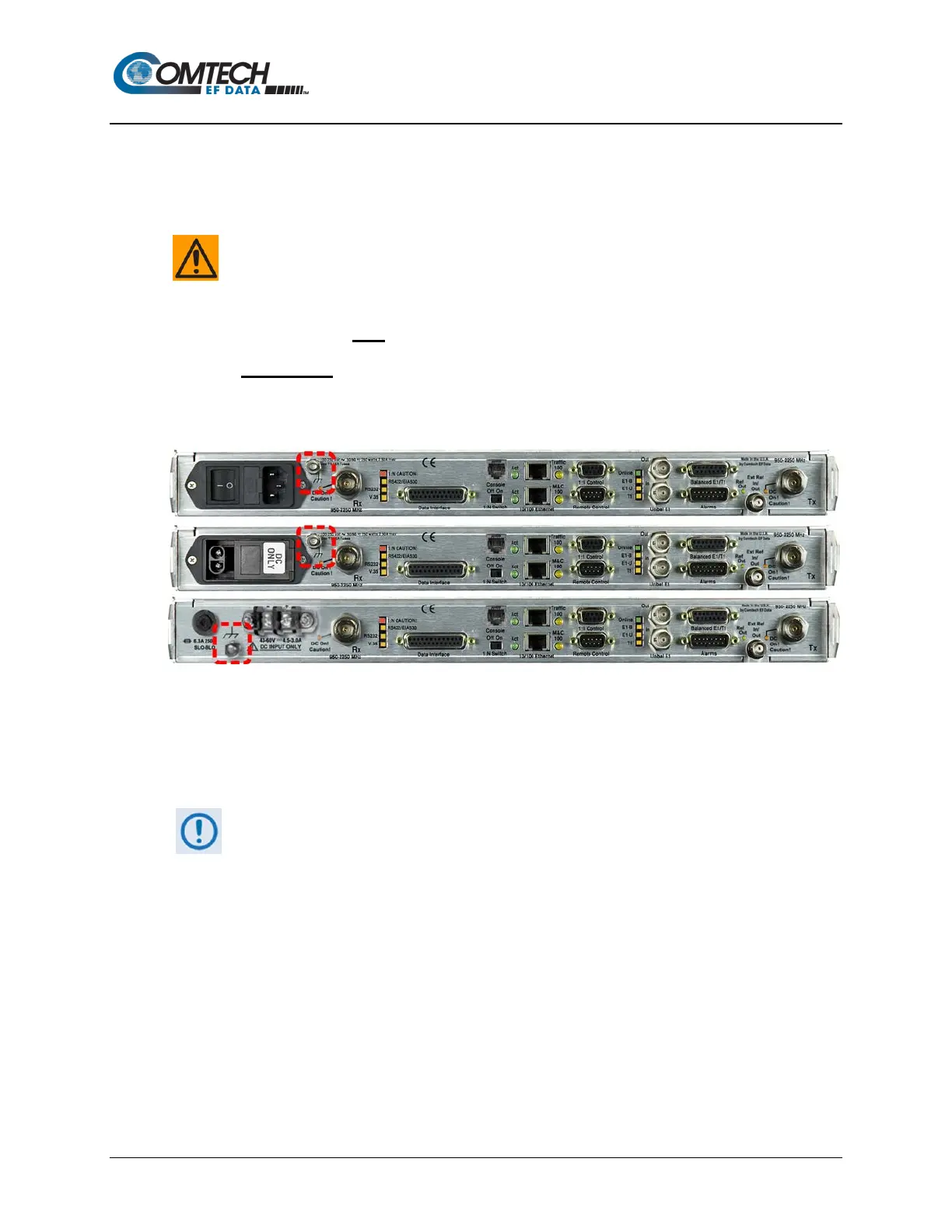

Figure 3-5. Modem Chassis Ground Interface (CDM-570AL-IP Shown)
Use the #10-32 stud, located adjacent to the power interface module or terminal block, for
connecting a common chassis ground among equipment.
The AC power interface provides the safety ground.
