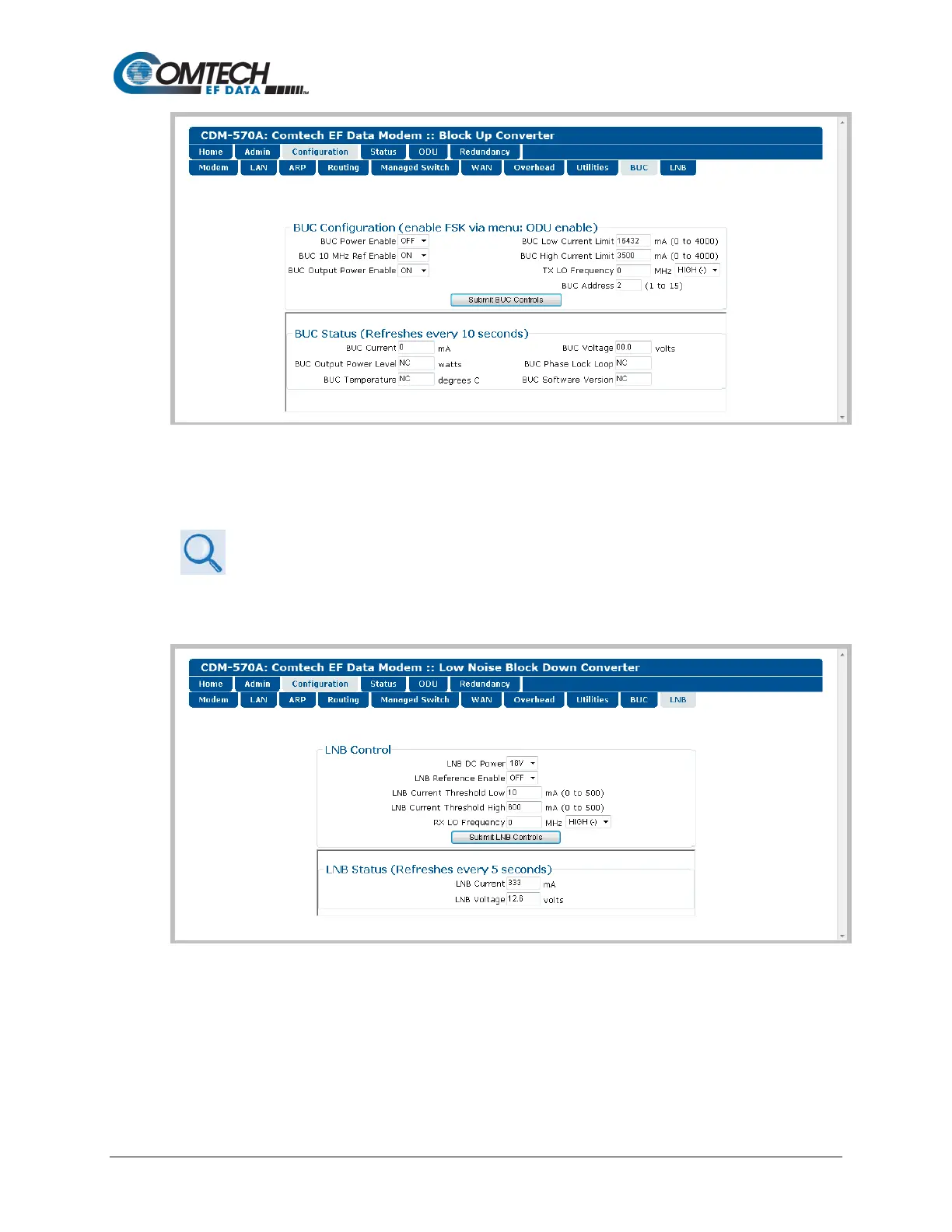

Figure 7-32. Configuration | BUC Page

7.4.3.3.10 Configuration | LNB (CDM/R-570AL Only)

Chapter 10. CDM-570A/570AL ODU (TRANSCEIVER, BUC, LNB) M&C Operation

When a LNB is connected to a CDM/R-570AL (L-Band) Satellite Modem, you may use this page

to configure its operating parameters and to view the LNB operational status.

Figure 7-33. Configuration | LNB Page
