CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Ethernet-based Remote Product Management 7–61 MN-CDM570A
7.4.3.4 Status Pages
The Status pages provide you with status, event logging, and operational statistics windows.
Click the Modem Status, System Logs, Modem Info, Traffic Statistics, Performance, or
Graph tab to continue.
7.4.3.4.1 Status | Modem Status
Use this page to view read-only status window pertaining to:
•
Alarms
•
Rx Parameters
• ACM (not active for
RS422, IP, V.35, RS232,
and G703)
•
CnC
•
AUPC
•
Fractional CnC Counters
•
General Status

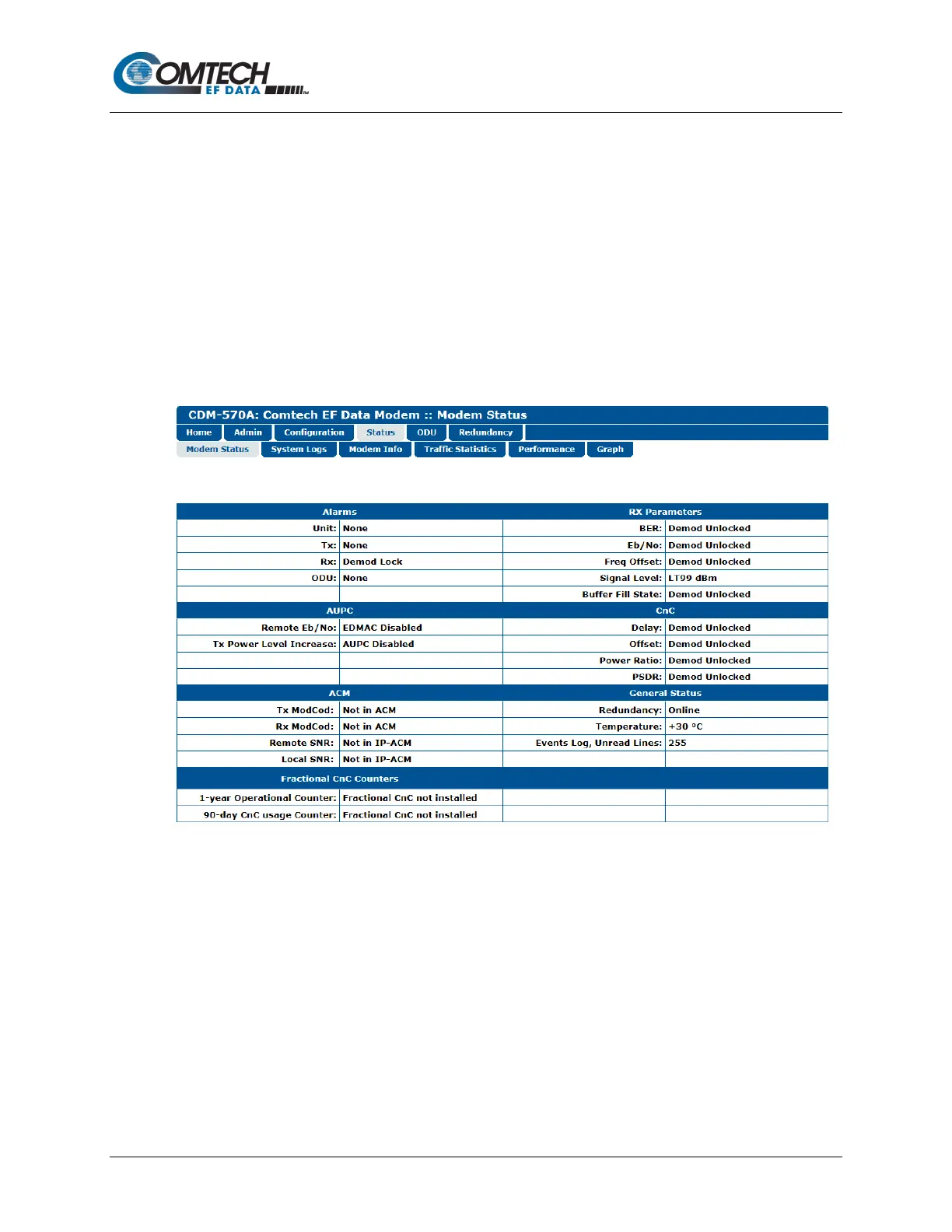

Figure 7-34. Status | Modem Status Page (VersaFEC ACM (IP-ACM) or
VersaFEC-2 ACM (V2-ACM) Mode Not Active)
