CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–63 MN-CDM570A

7.4.3.4.2 Status | System Logs | Modem

Chapter 6. FRONT PANEL OPERATION

Use this page to review logged operational events and statistics, and to control how the fault,

statistics, and alarm masking parameters are processed by the modem.

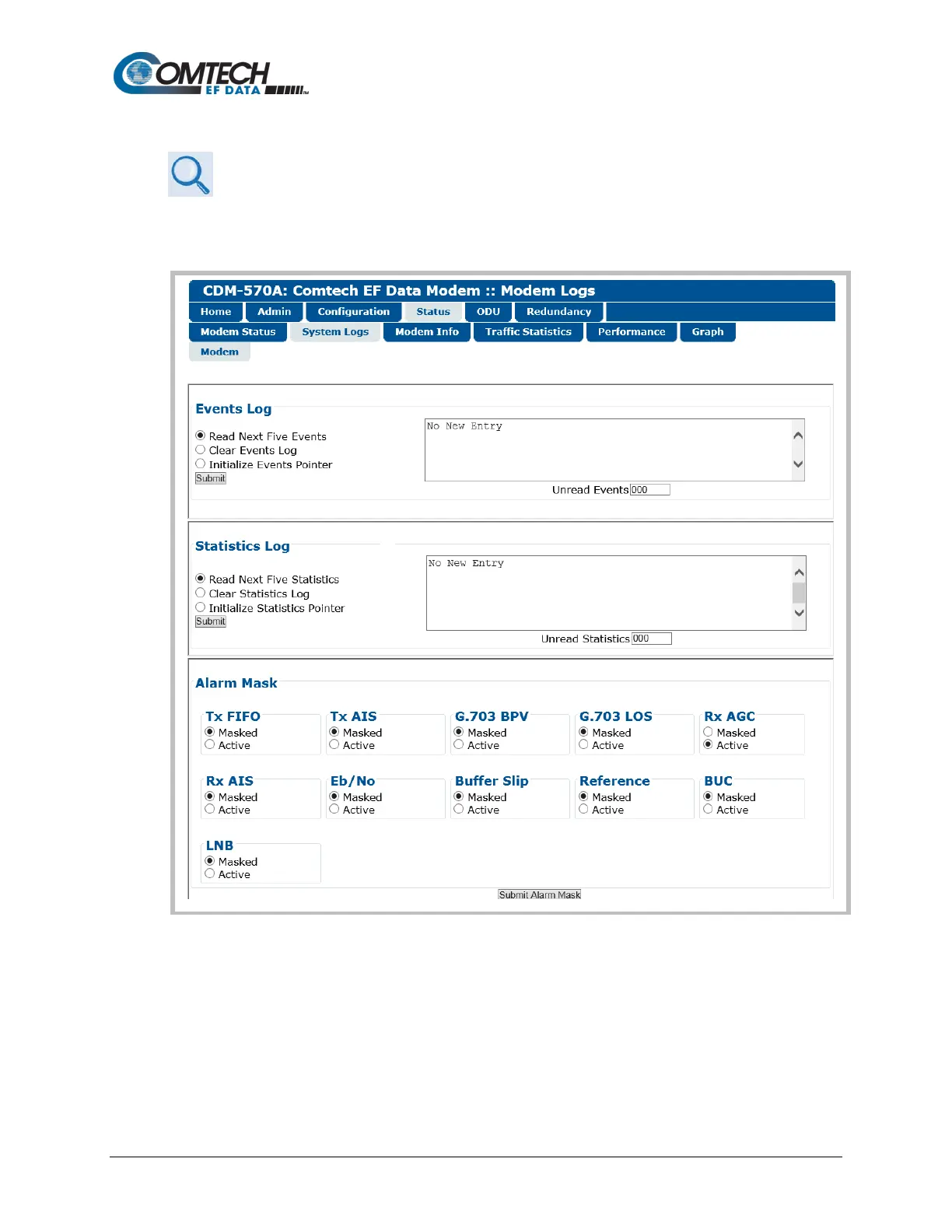

Figure 7-36. Status | System Logs | Modem Page
