CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–62 MN-CDM570A

Use this page to view read-only status window pertaining to:

•

Alarms

•

Rx Parameters

•

AUPC

•

CnC

•

ACM (active)

•

General Status

•

Fractional CnC Counters

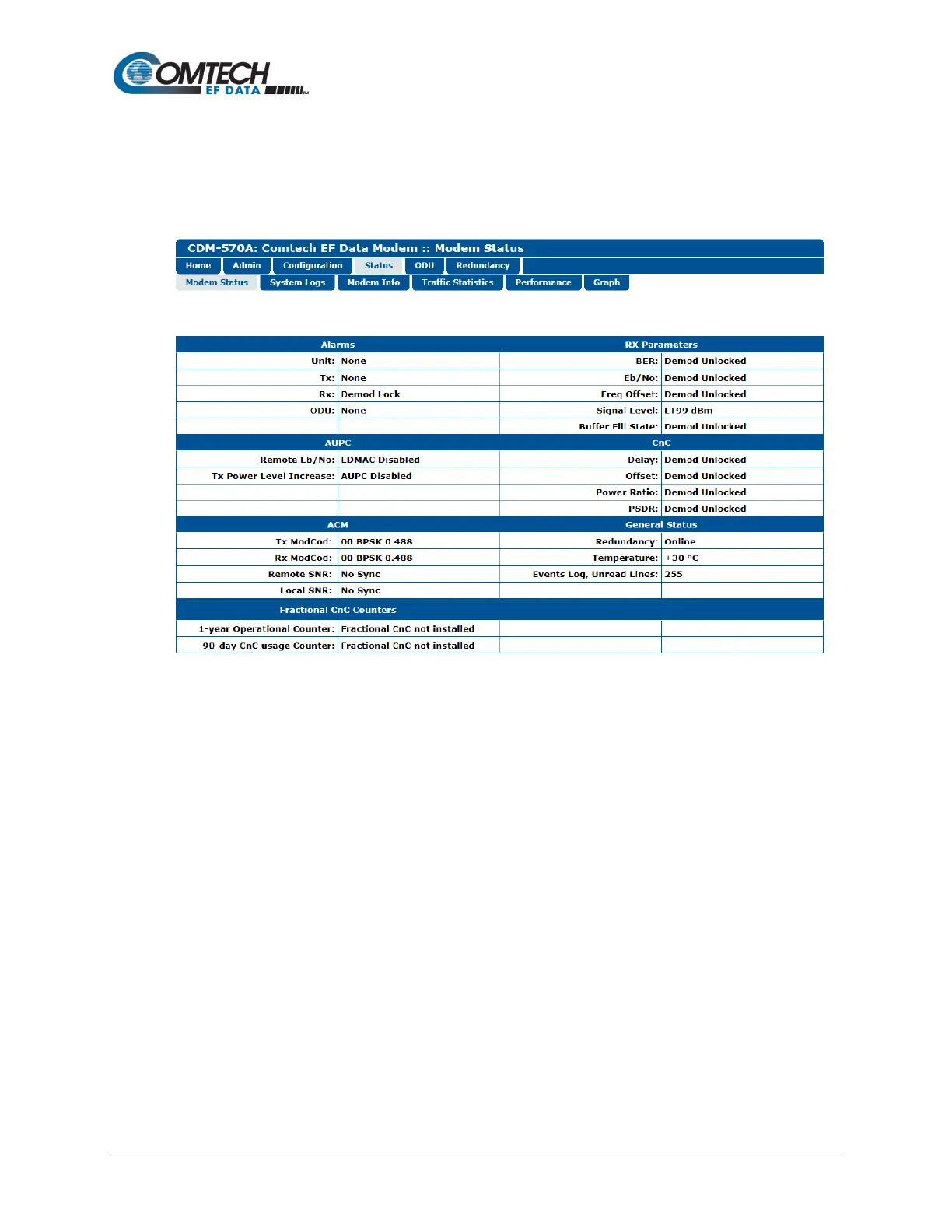

Figure 7-35. Status | Modem Status Page (VersaFEC ACM (IP-ACM) or

VersaFEC-2 ACM (V2-ACM) Mode Active)
