CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Rear Panel Connectors and Pinouts 3–16 MN-CDM570A
3.3.2.2 AC Operation – Chassis Power and Fusing
Feature
Description
1
On / Off Switch
2
Press-fit Fuse Holder
3
IEC Three-prong Connector

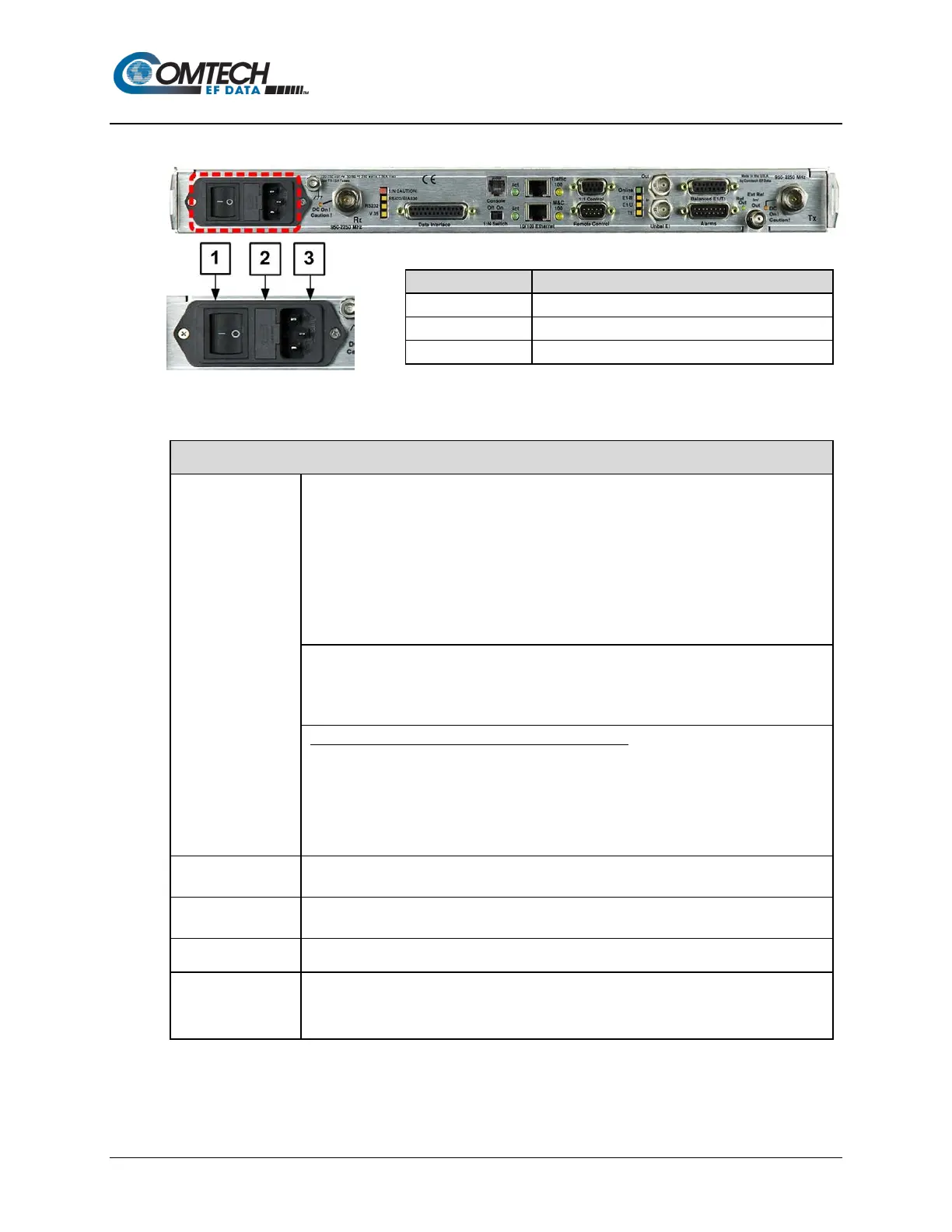

Figure 3-6. Modem Standard AC Chassis (CDM-570AL-IP Shown)
AC Power Specifications
AC Consumption
CDM-570AL L-Band:
• Without Optional Packet Processor, CnC, or BUC Power Supply: 29 Watts typical,
32 Watts maximum
• With Optional Packet Processor; without CnC or BUC Power Supply: 42 Watts
typical
• With Optional Packet Processor and CnC; without BUC Power Supply: 48 Watts
maximum
• With Optional Packet Processor, CnC, and 150 Watt @50
°
C, 180 Watt @30
°
C
BUC Power supply: 250 Watts (maximum)
CDM-570A 70/140 MHz:
• Without Optional Packet Processor or CnC: 29 Watts typical, 32 Watts maximum
• With Optional Packet Processor; without CnC: 42 Watts typical
• With Optional Packet Processor and CnC: 48 Watts maximum
Typical measured VA, Power Factor and power data:
CDM-570AL L-Band:
240V 50 Hz Power Factor = 0.44, 65VA, 29 Watts
10V 60 Hz Power Factor = 0.55, 50VA, 28 Watts
CDM-570A 70/140 MHz:
40V 50 Hz Power Factor = 0.33, 87VA, 29 Watts
110V 60 Hz Power Factor = 0.53, 51VA, 28 Watts
Operating Voltage
Standard AC operation (CDM-570A or CDM-570AL only):
100-240 volts AC, +6%/-10% – autosensing (total absolute max. range is 90-254 volts AC)
Modem Connector
Type
IEC-60320 Type C14
Mating Connector IEC-60320 Type C13
Fuse Protection
Use two (2X) 3.15A 5mm x 20mm Slo-Blo fuses for line and neutral fusing (115V AC
operation). Fuses are contained within a fuse holder that is press-fit into the body of the
IEC power module.
