Optional Packet Processor - Serial/Telnet CLI Operation 9–23 MN-CDM570A

9.3.3.1.2 Ethernet Interface (Router Mode)

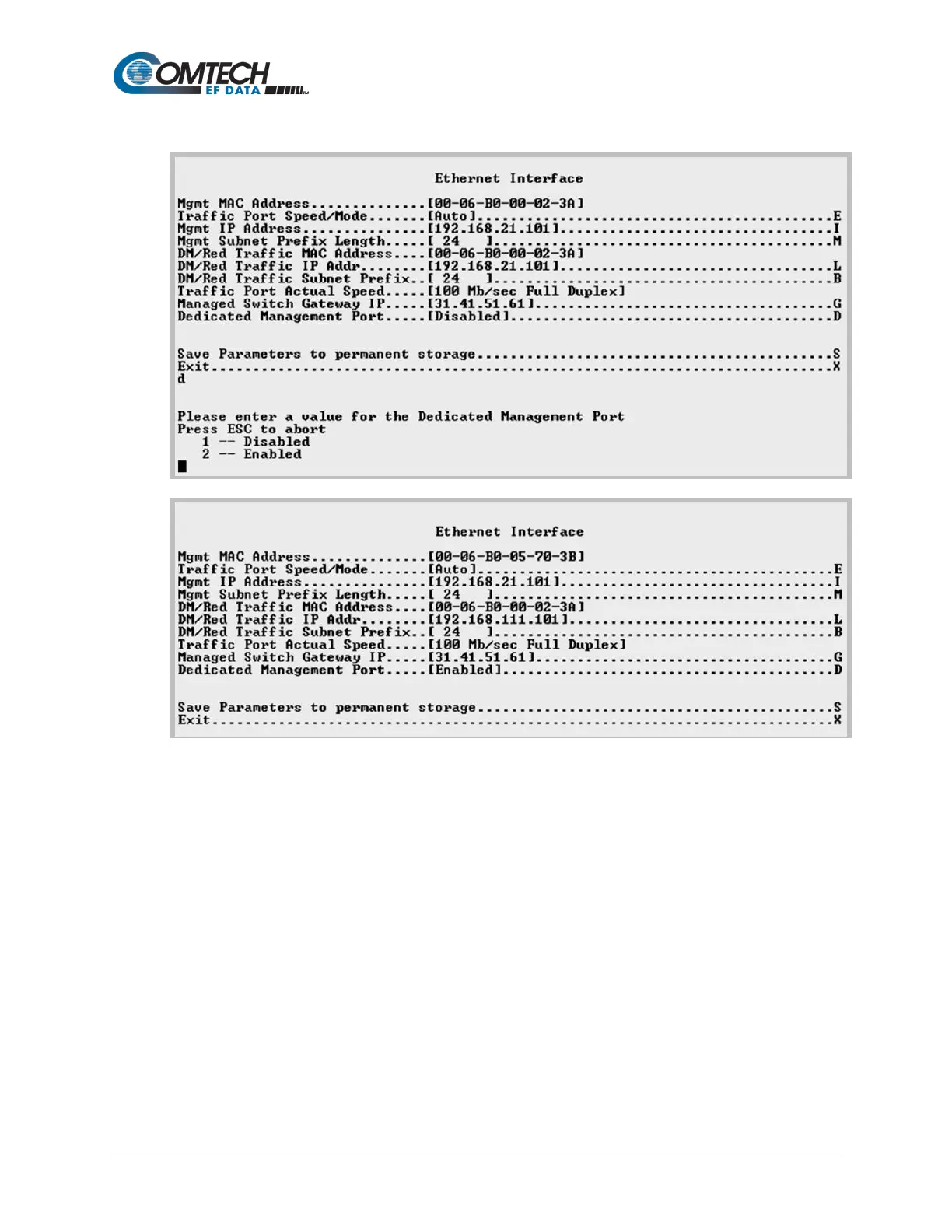

(TOP) Dedicated Management Port = DISABLED

(BOTTOM) Dedicated Management Port = ENABLED

Figure 9-13. Ethernet Interface in Router Mode
