CDM-570L/570AL Satellite Modem with Optional Packet Processor

Revision 5

Optional High Performance Packet Processor D–20 MN-CDM570A

D.1.3.4 Telnet Interface

• Sect. 7.3 Telnet Interface (Chapter 7. ETHERNET-BASED REMOTE PRODUCT

MANAGEMENT)

• Chapter 8. SERIAL-BASED REMOTE PRODUCT MANAGEMENT

• Chapter 9. OPTIONAL PACKET PROCESSOR – SERIAL/TELNET CLI

OPERATION

Comtech EF Data provides a Telnet interface for the purpose of equipment monitor and control

(M&C) using either remote control commands and queries or, when equipped with the optional

Packet Processor, the Telnet Command Line Interface (CLI) (Figure D-1).

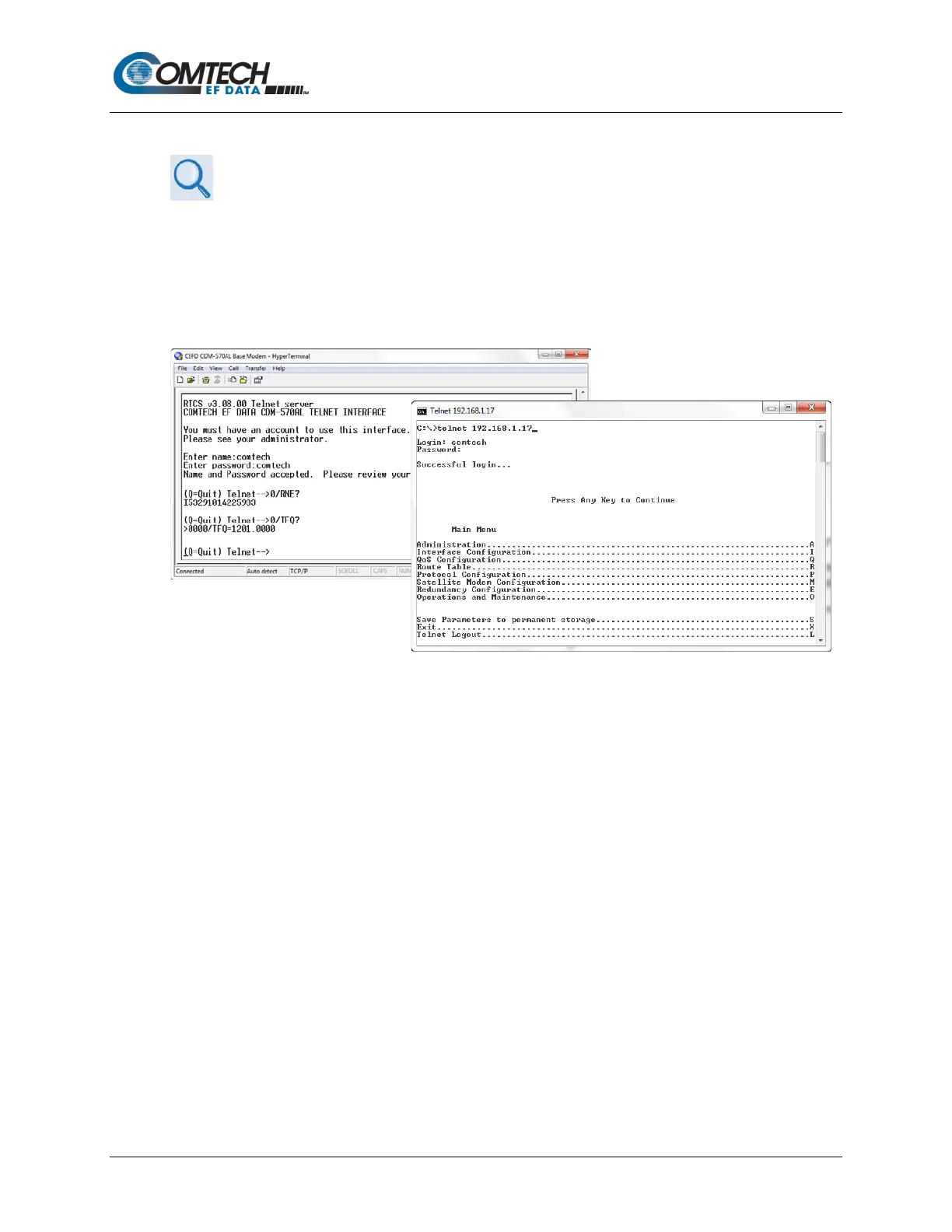

Figure D-1. CDM-570A/570AL-IP Telnet Interfaces (Serial Remote / CLI)
