Comtech EF Data CDM-570AL - MONITOR: Outdoor Unit Monitor) LNB; BUC and LNB M&C Via the CDM-570 A HTTP Interface

CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
ODU (Transceiver, BUC, LNB) Operation 10–45 MN-CDM570A
10.3.1.2.2.2 (MONITOR: Outdoor Unit Monitor) LNB
LNB Voltage: 13.1 volts
LNB Current: 235 mA(ENT)
This read-only screen displays the LNB Voltage and LNB Current parameters.
10.3.2 BUC and LNB M&C via the CDM-570A HTTP Interface
Chapter 7. ETHERNET-BASED REMOTE PRODUCT MANAGEMENT
Figure 10-14 shows the menu tree for ODU-accessible features when using the CDM/R-570AL
(L-Band) Satellite Modem. Modem operations not specific to CDM/R-570AL BUC or LNB operation
appear dimmed in this diagram and are explained in Chapter 7. This menu tree depicts the
CDM-570A HTTP Interface as it appears with all FAST Features activated, and the optional IP
Packet Processor installed and active.
See Sect. 10.2.2 for ODU operations applicable to the CDM-570A (70/140 MHz) and it use with
Comtech EF Data CSAT/KST Transceivers.

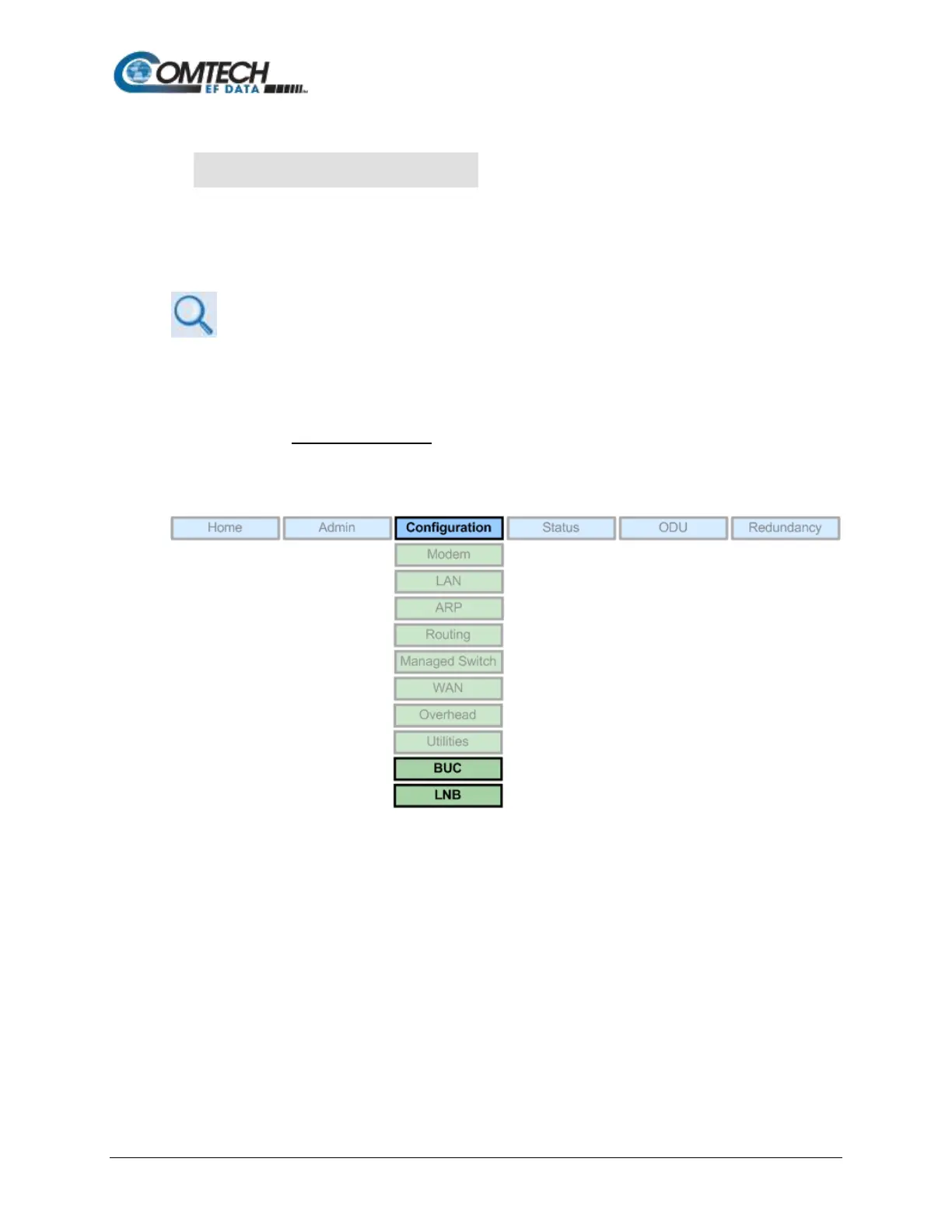

Figure 10-14. CDM-570A HTTP Interface – ODU BUC/LNB Menu Tree
