CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–69 MN-CDM570A

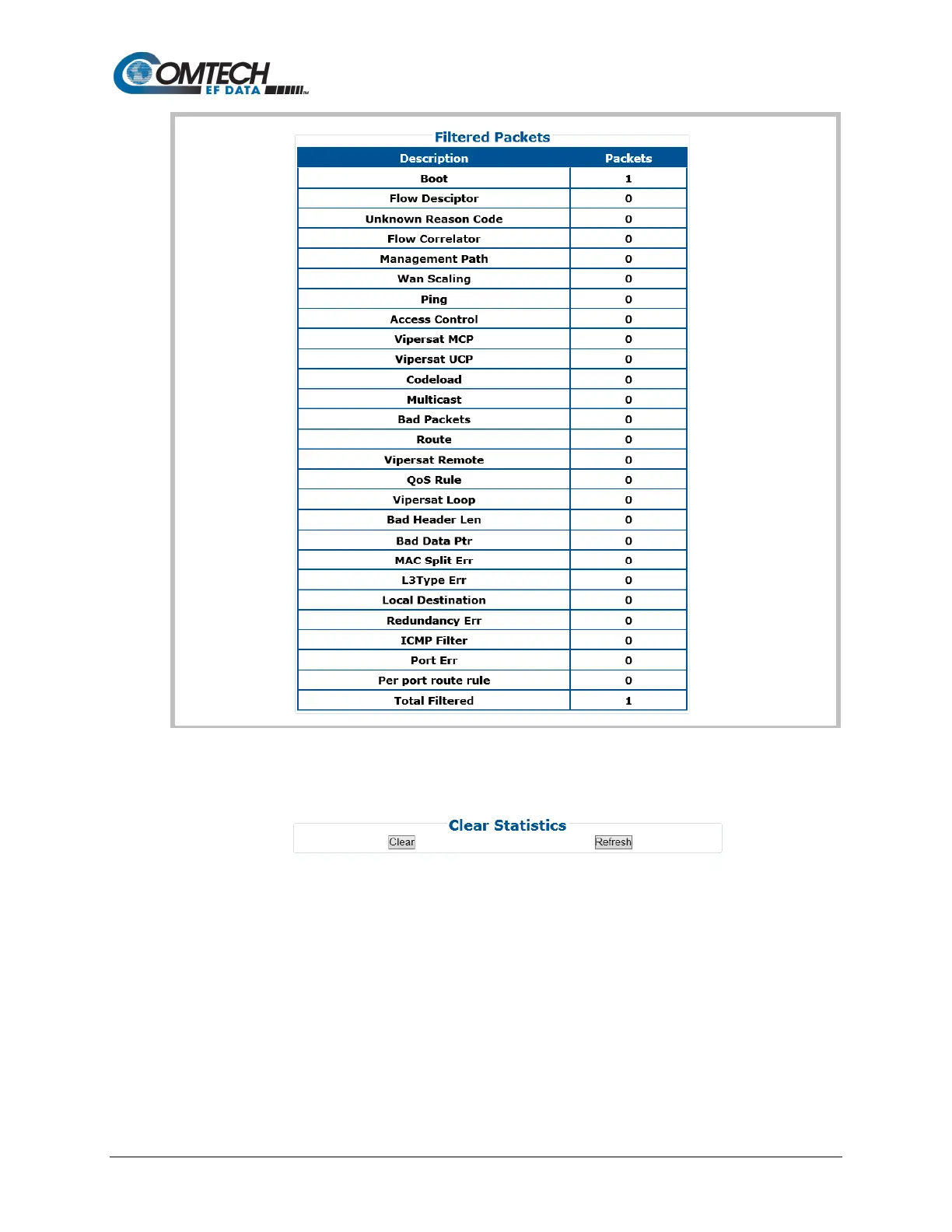

Figure 7-41. Status | Traffic Statistics | Router Page (lower section)

Clear Statistics

Click [Clear] to erase all existing information and reset the statistics counters. Otherwise, click

[Refresh] to update the page with the latest polled data.
