CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Ethernet-based Remote Product Management 7–49 MN-CDM570A

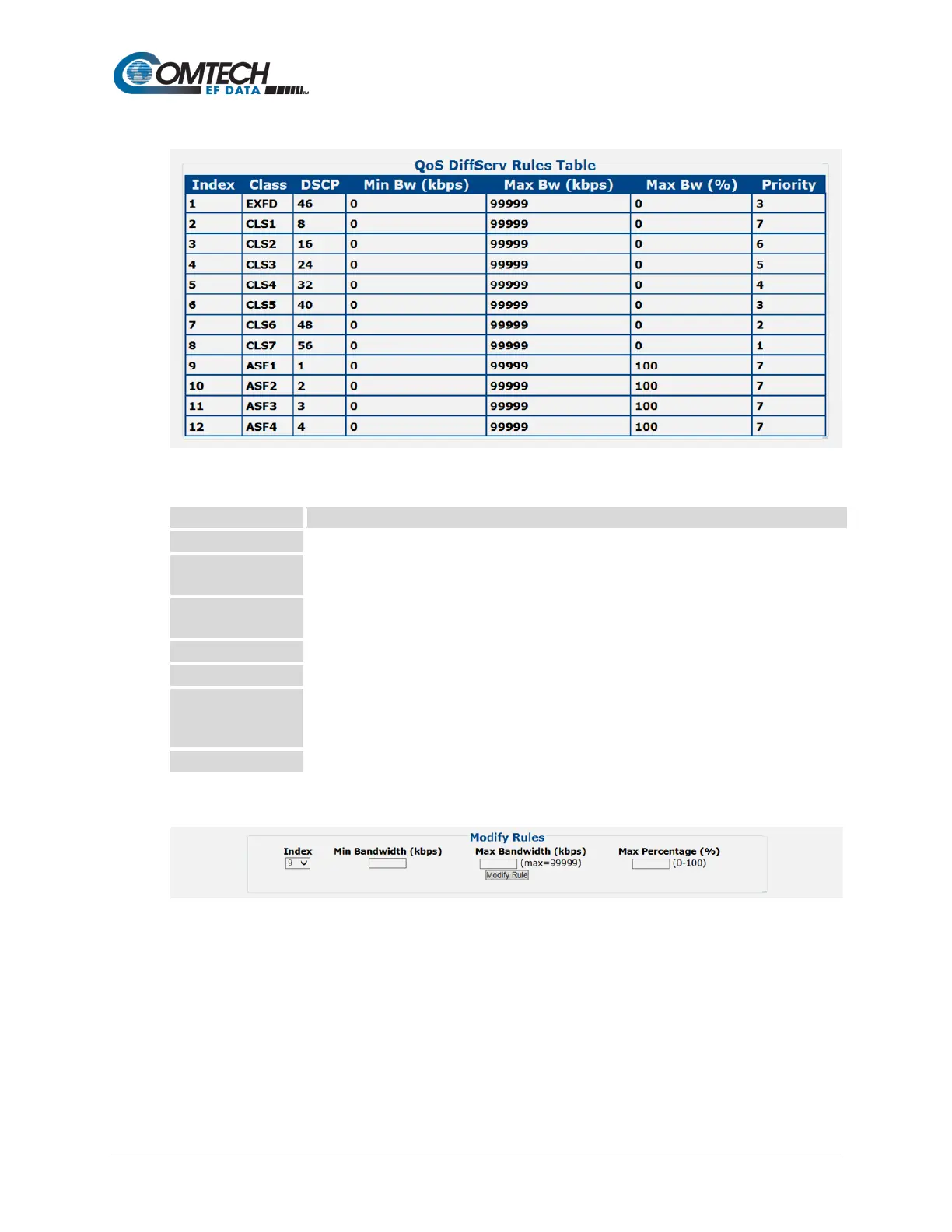

QoS DiffServ Rules Table
This section displays all existing QoS DiffServ (Differentiated Services) Rules Table entries. From
left to right:
This is the internal table index that is automatically assigned and cannot be edited.
Specifies the DSCP Class Selector Precedence type (Expedited Forwarding, Assured
Forwarding, etc.)
Specifies the Class Selector DiffServ Code Point (DSCP) value in the Type of Service (ToS)
byte within the IP header .
Specifies the Minimum Bandwidth value in kilobits per second.
Specifies the Maximum Bandwidth value in kilobits per second.
Specifies the Maximum Bandwidth (%) value. This is useful where the uppermost bandwidth
limit must be scaled as a percentage of the Tx bandwidth of the modem, when the modem
bandwidth changes over time due to ACM or DSCPC in Vipersat Mode
Specifies the priority established for the specific rule (1-8).
QoS DiffServ Modify Rules
This section allows you to modify an existing DiffServ QoS Rule:
• Index – Use the drop-down list to select the rule to modify.
• Min Bandwidth (kpbs) / Max Bandwidth (kbps) / Max Percentage (%) – Entire the
desired parameter as needed.
Click [Modify Rule] to update the existing rule.
