CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

DoubleTalk Carrier-in-Carrier Option G–12 MN-CDM570A

Carrier-in-Carrier link design involved trying different Modulation & FEC Code Rates to find the

optimal combination (the CDM-570A/AL also offers 5% to 35% transmit filter rolloffs that can be

used in addition to Modulation and FEC for link optimization):

• QPSK, VersaFEC 0.706 with Carrier-in-Carrier

• QPSK, VersaFEC 0.631 with Carrier-in-Carrier

• QPSK, VersaFEC 0.533 with Carrier-in-Carrier

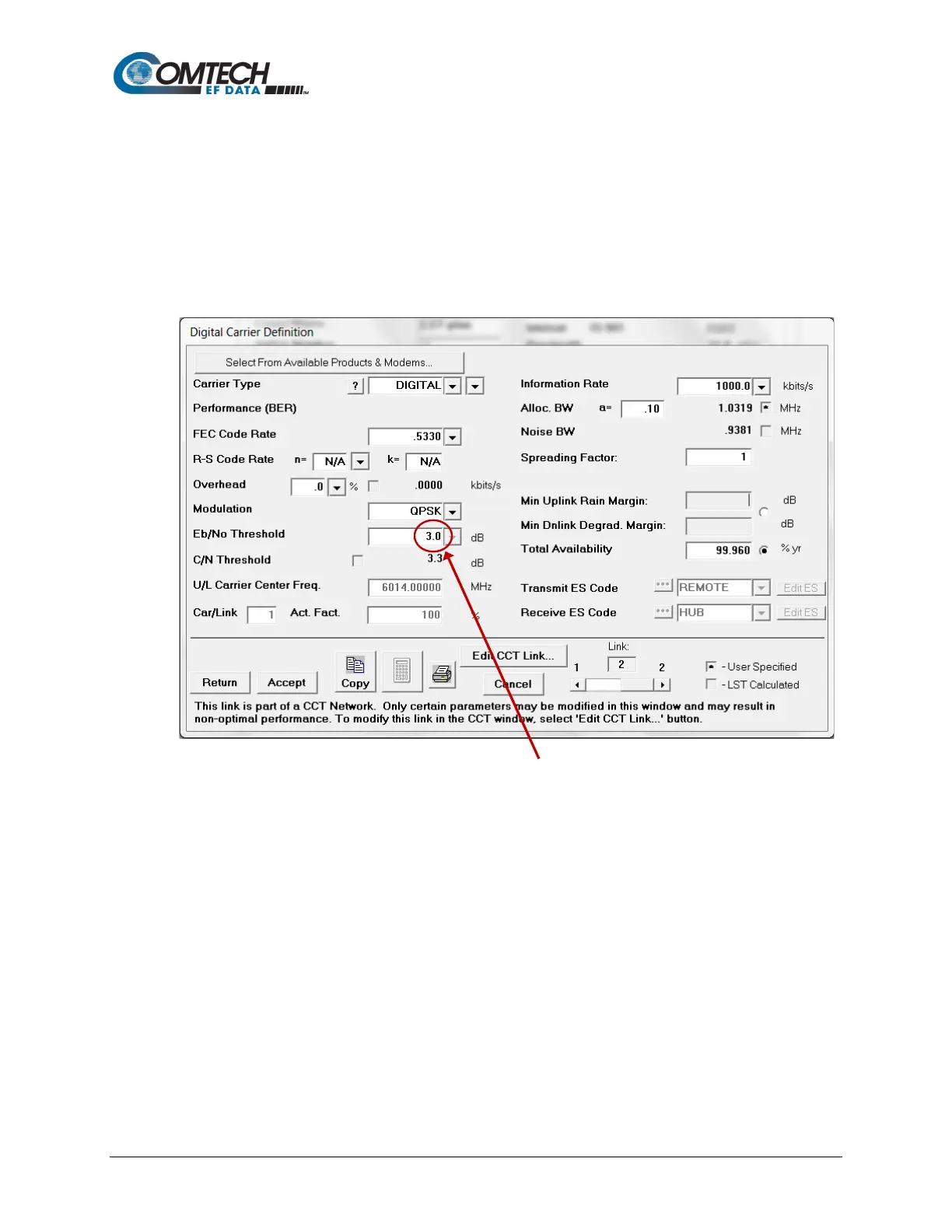

Link parameters and LST summary, for QPSK, VersaFEC 0.533 with Carrier-in-Carrier, is as

follows:
