CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

1:1 IP Redundancy N–7 MN-CDM570A

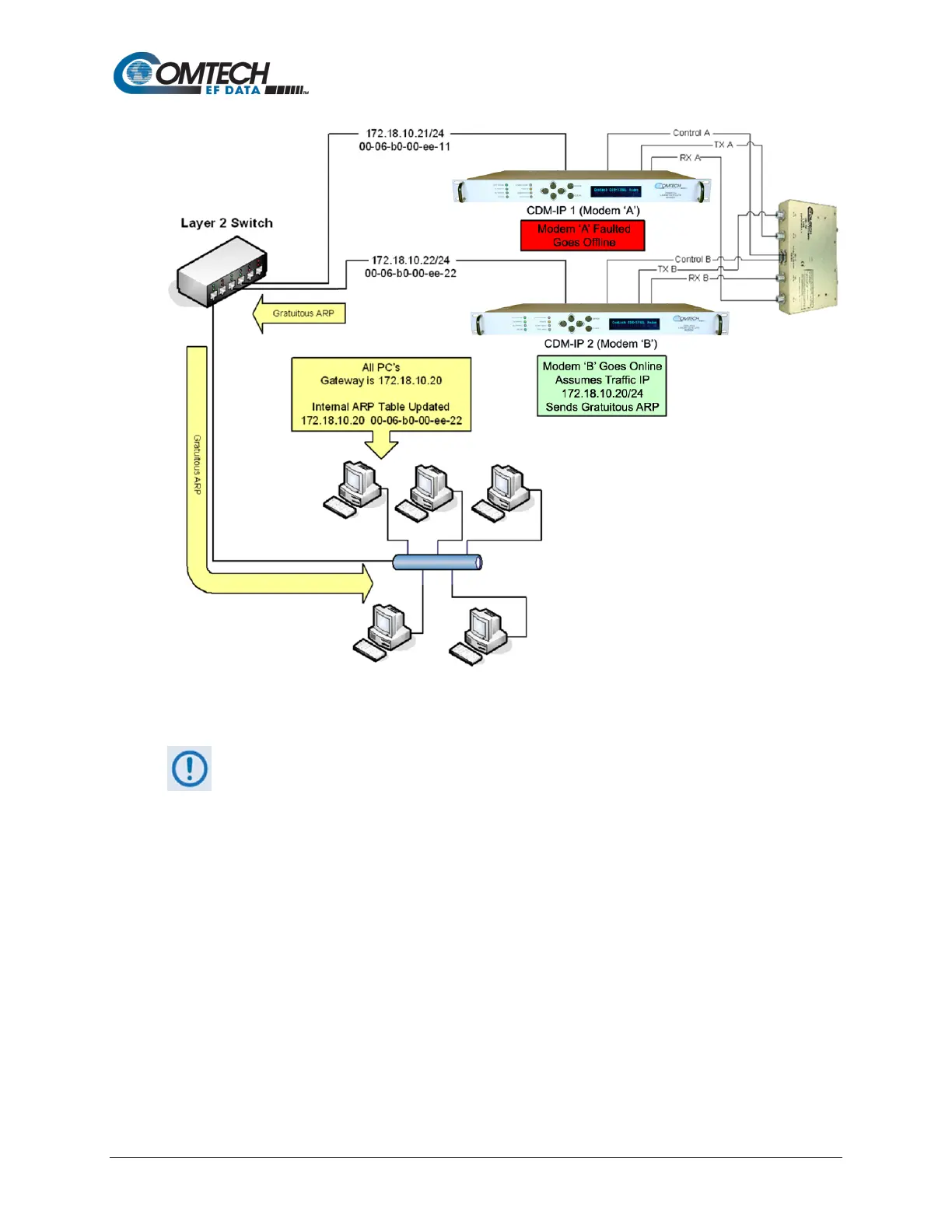

Figure N-3. CDM-570A/570AL-IP 1:1 IP Redundancy Switchover Example

(Router Mode Shown, Modem ‘B’ Online)

All configuration changes can only be made to the Online CDM-570A/570AL-

IP and will require a “Save Parameters to permanent storage” so that the

configuration change is also applied to the Backup CDM-570A/570AL.
