Field Service Ver. 1.0 Aug. 2005 14. Adjust Mode
203
bizhub 200/250/350Adjustment / Setting
B. Registration (FD)
Functions
• To vary and adjust the image start position in the sub scanning direction for each paper
source.
Use
• The PH Unit has been replaced.
• The image on the copy deviates in the sub scan direction.
Adjustment
Specifica-
tion

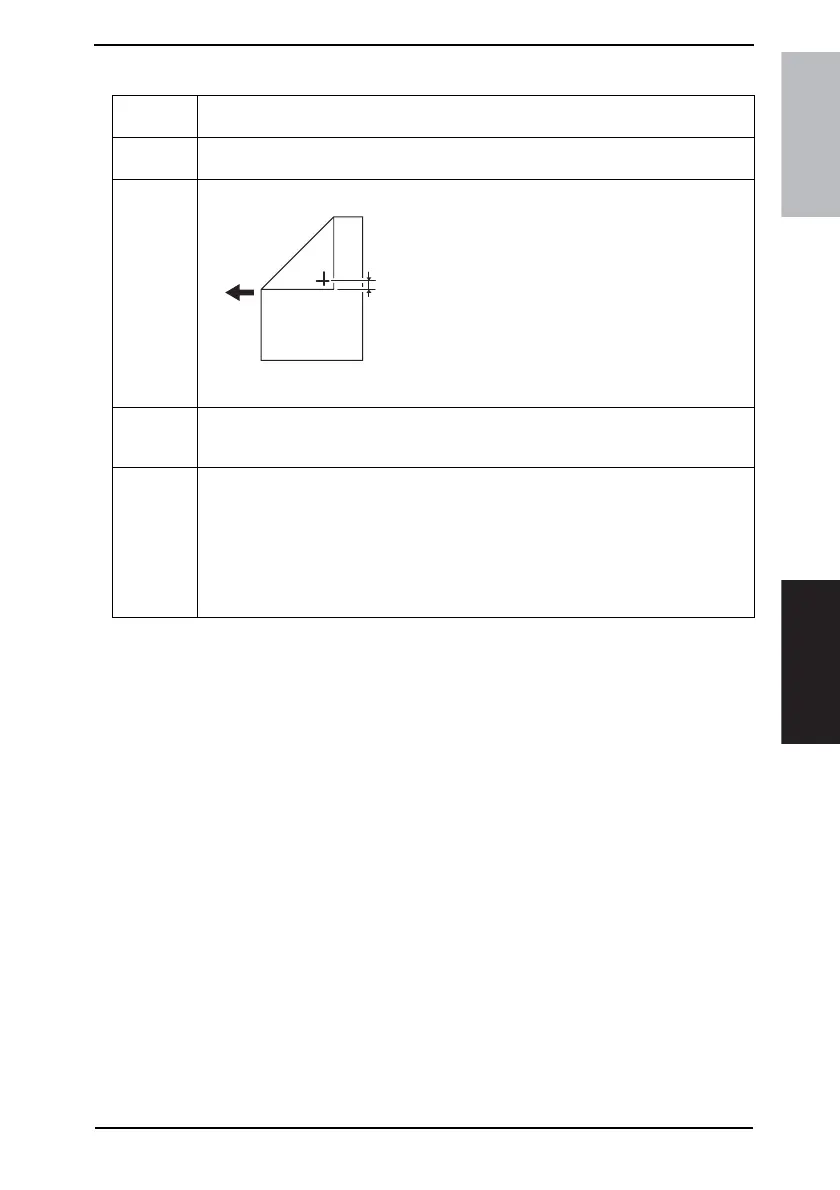

Width B on the test pattern produced should fall
within the following range.
Specifications: 11.3 mm ± 1.5 mm
Setting Range:
<bizhub 350>
-19 (-6.08 mm) to +19 (+6.08 mm)
(in 0.32 mm increments)
<bizhub 250/bizhub 200>
-21 (-5.88 mm) to +21 (+5.88 mm)
(in 0.28 mm increments)
Adjustment
Instructions
If width B on the test pattern is wider than specifications.
Longer than the actual scale: decrease the setting value.
Shorter than the actual scale: increase the setting value.
Setting/
Procedure
1. Enter the Adjust Mode.
2. Touch [Printer] and [Registration (FD)] in that order.
3. Touch the [Test Print].
4. Select the paper source and press the Start key.
5. Check the dimension of width B on the test pattern.
6. If it fails to meet the specifications, change the setting and redo the check.
7. If it meets the specifications, touch [END].
8. Following the same procedure, adjust for all other paper sources.
4040F3C518D
A
Width B
