16. Mechanical adjustment Field Service Ver. 1.0 Aug. 2005
216
bizhub 200/250/350
Adjustment / Setting

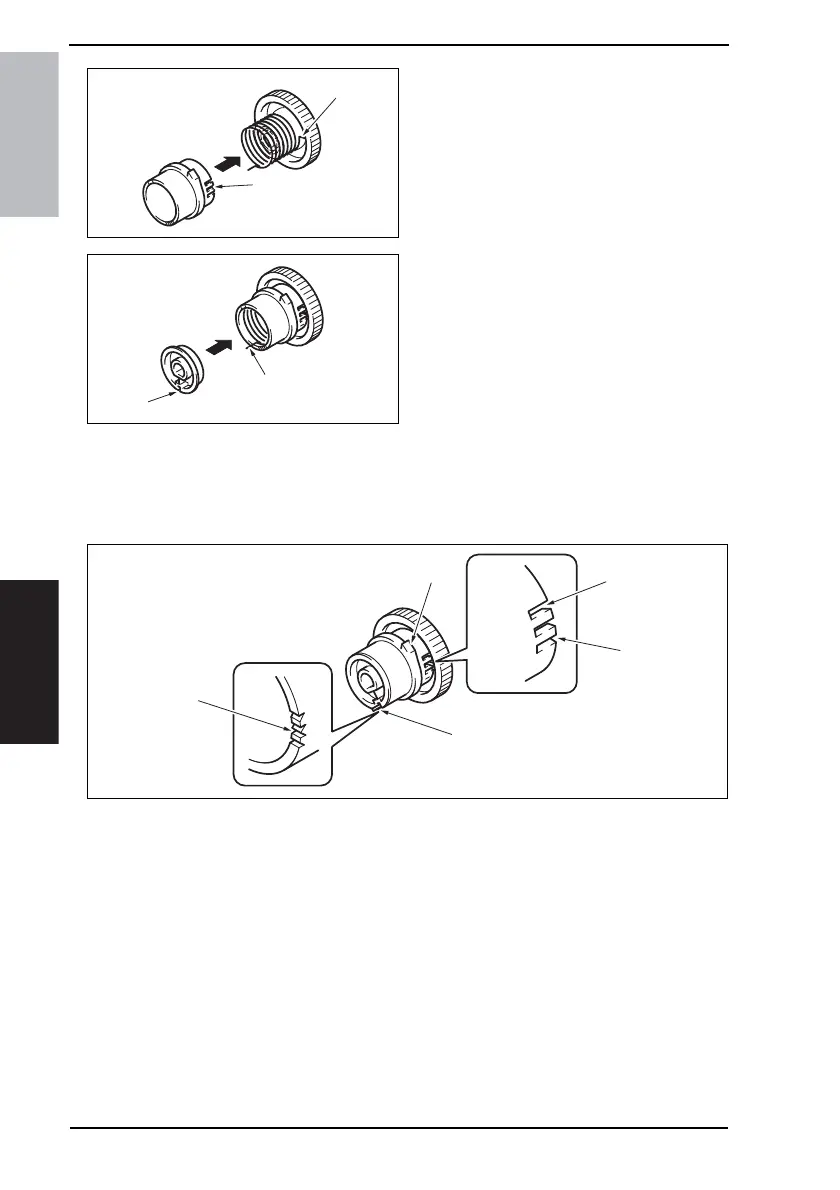

7. Fit hook 1 of the torque limiter [11]
into stopper B of the coupling [12].
8. Fit hook 2 of the torque limiter [13] in
a slit in the collar [14].
9. Holding the tab [15] of the coupling, rotate the gear several turns in the direction of the
arrow so that hook 2 is located at the center of portion P [17] of the coupling. If hook 2
[16] cannot be brought to the center, fit hook 1 of the torque limiter in stopper A [18] or
stopper C [19] of the coupling; then turn the gear again as necessary. Bring hook 2 [16]
into a point nearest the center of portion P [17].
4040F2C651DA
[11]
[12]
4040F2C652DA
[13]
[14]
4040F2C653DA
[19]
[18]
[16]
[15]
[17]
