Field Service Ver. 1.0 Aug. 2005 18. Jam Display
223
bizhub 200/250/350
Troubleshooting

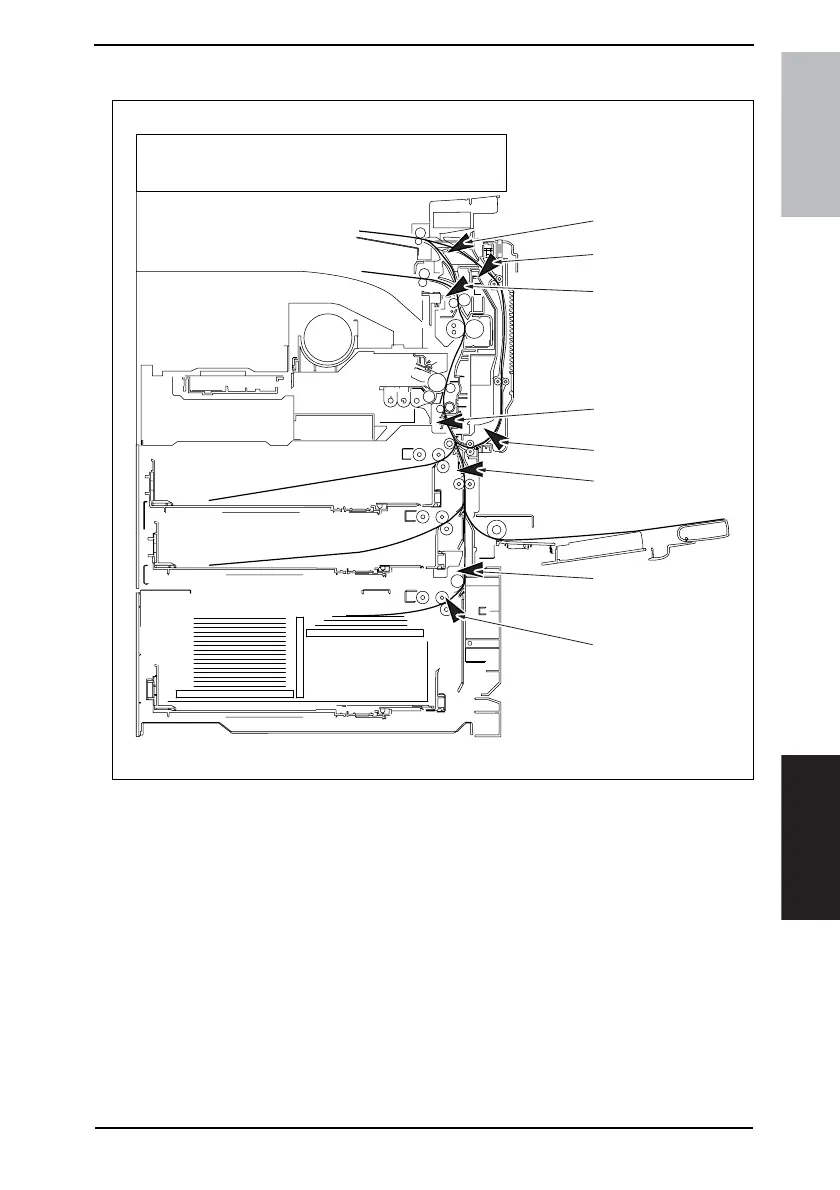

18.2.2 System Mounted with PC-402
[1] Switch Back Unit Sensor PC26 [5] Duplex Unit Lower Transport Sensor PC25
[2] Duplex Unit Upper Transport Sensor PC24 [6] Vertical Conveyance Sensor PC2
[3] Paper Exit Sensor PC4 [7] Vertical Conveyance Sensor PC2-LCT
[4] Synchronizing Roller Sensor PC1 [8] Paper Feed Sensor PC1-LCT
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
4040F4C502DA
To Next Page
