Maintenance

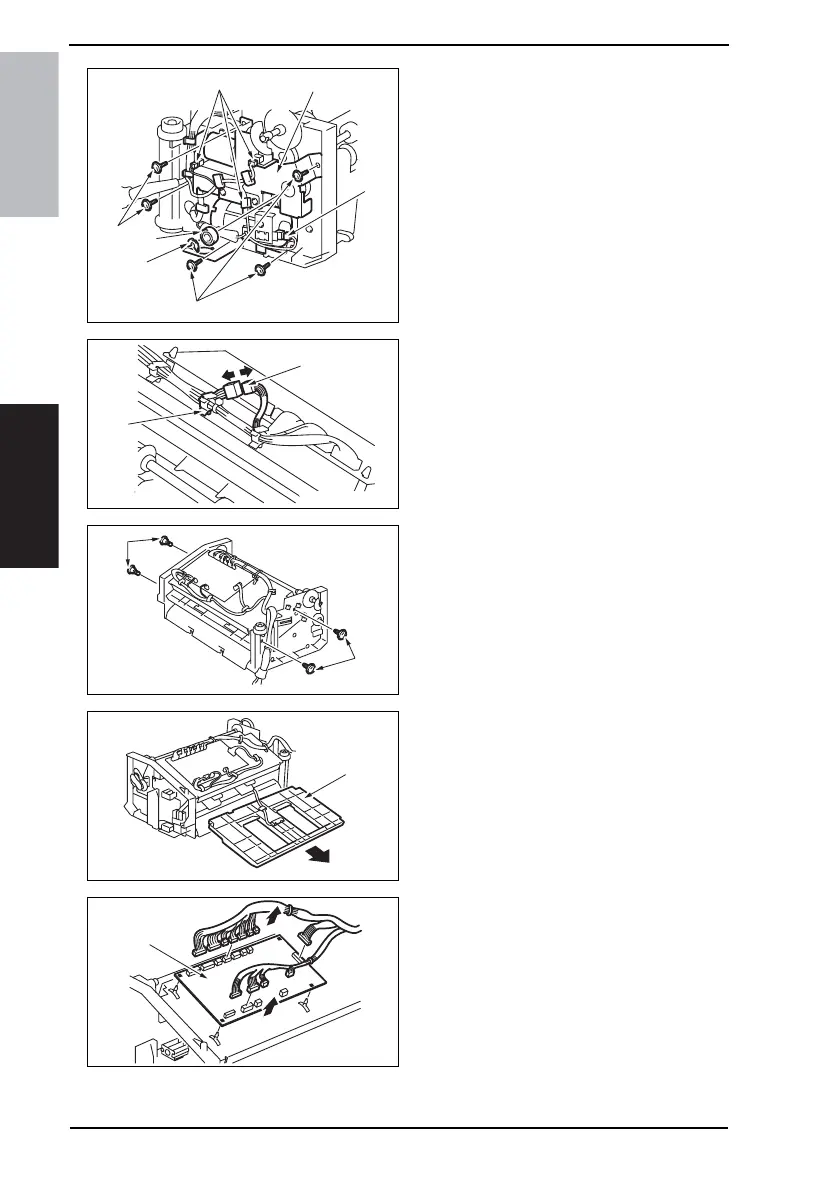

11. Remove the harness from the wire
saddle.
12. Unplug four connectors [7].
13. Remove the C-ring [8], and remove
the bearing [9].
14. Remove five screws [10], and
remove the Drive Unit [11].
15. Remove the wire saddle [12], and
unplug the connector [13].
16. Remove two screws [14] and two
shoulder screws [15].
17. Remove the Empty [16].
18. Unplug all the connectors on the
Main Control Board.
19. Remove the PWB support, and then
remove the Main Control Board [17].
4511F2C517DA
[11]
[7]
[7]
[8]
[9]
[10]
[10]
4511F2C518DA
[13]
[12]
4511F2C519DA
[14]
[15]
4511F2C520DA
[16]
4511F2C521DA
[17]
