Field Service Ver. 1.0 Aug. 2005 4. Other
11
SD-502Maintenance

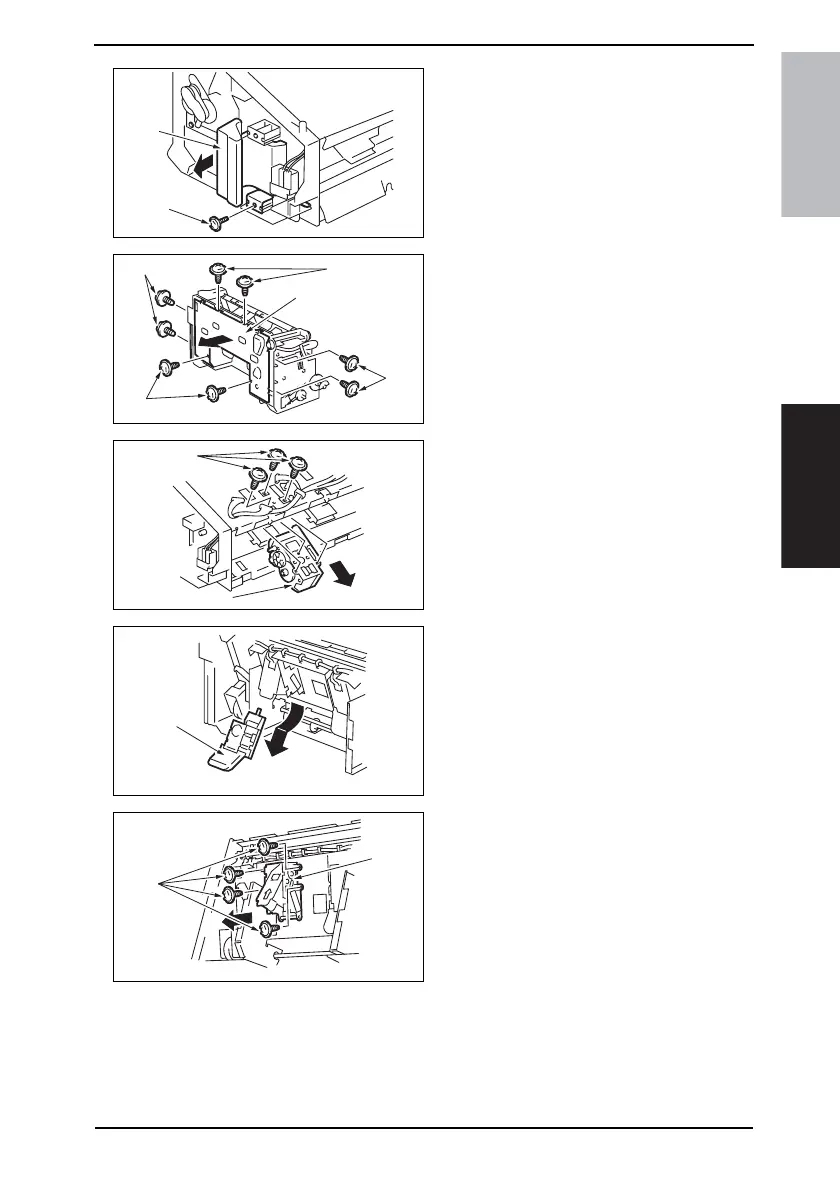

20. Remove the screw [18], and remove
the lock release lever [19].
21. Remove eight screws [20], and
remove the Lower Cover [21].
22. Remove the wire saddle and unplug
the connector.
23. Remove three screws [22], and
remove the Clincher 1 [23].
24. Remove the Staple Cartridge 1 [24].
25. Remove four screws [25], and
remove the Stapler 1 [26].
NOTE
• To replace Clincher 2 and Stapler 2,
repeat steps 22 to 25.
4511F2C522DA
[18]
[19]
4511F2C523DA
[21]
[20]
[20]
[20]
[20]
4511F2C524DA
[23]
[22]
4511F2C525DA
[24]
4511F2C526DA
[25]
[26]
