4. Other Field Service Ver. 1.0 Aug. 2005
12
SD-502
Maintenance

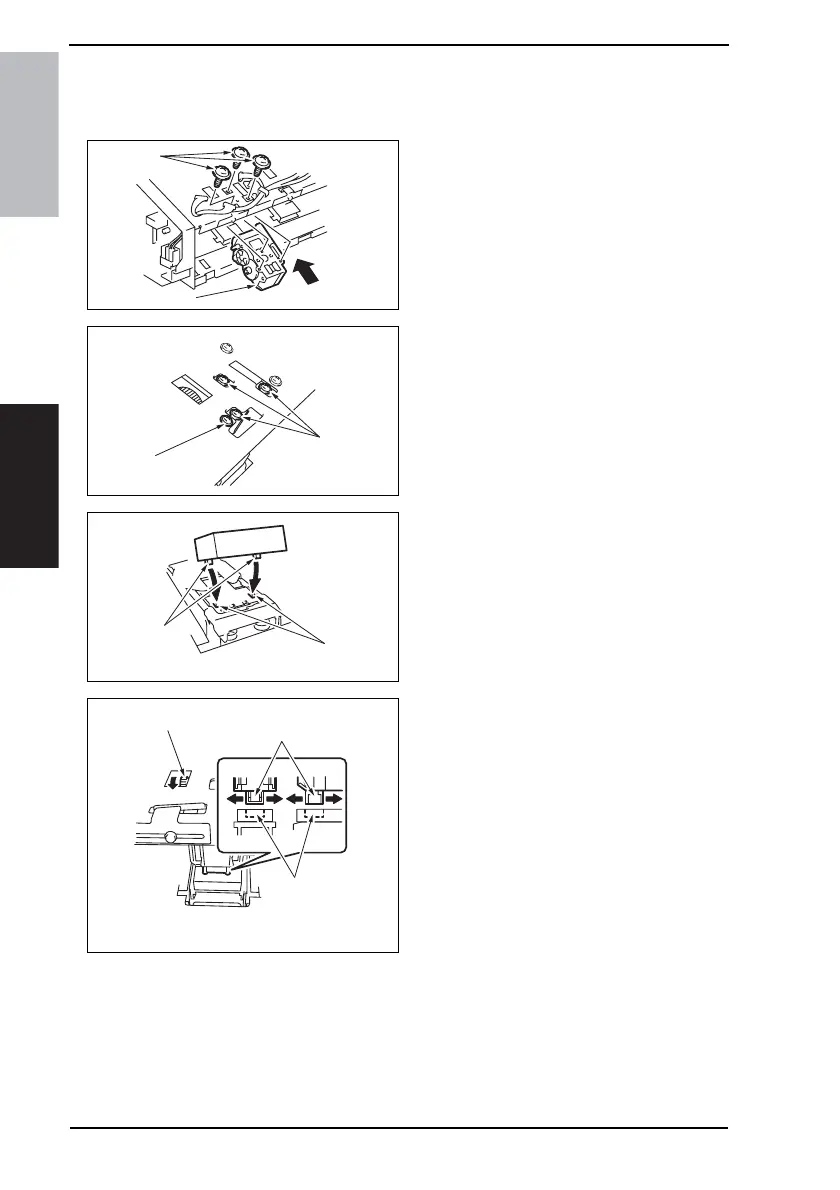

Precaution for Clincher Reinstallation
• When the Clincher is installed, the position of the Stapler and the Clincher will be
misaligned. Be sure to perform the following adjustment.
1. Use three screws [1] to temporary fix
the Clincher [2].
2. Loosen the screw [3] of the stopper.
3. Loosen three screws [4] of the
Clincher.
4. Aligning the protrusions of the jig [6]
with the recesses in the Stapler [5],
fit the jig to the Stapler.
NOTE
• Make sure that the protrusions of
the jig properly rest in the recesses.
5. Turn the gear [7] of the Clincher and
then slide the Clincher Assy so that
the protrusion of the Clincher [9] fits
into the recess in the jig [8].
4511F2C550DA
[2]
[1]
4511F2C551DA
[3]
[4]
4511F2C552DA
[6]
[5]
4511F2C553DA
[8]
[9]
[7]
To Next Page
