4. Other Field Service Ver. 1.0 Aug. 2005
14
SD-502
Maintenance

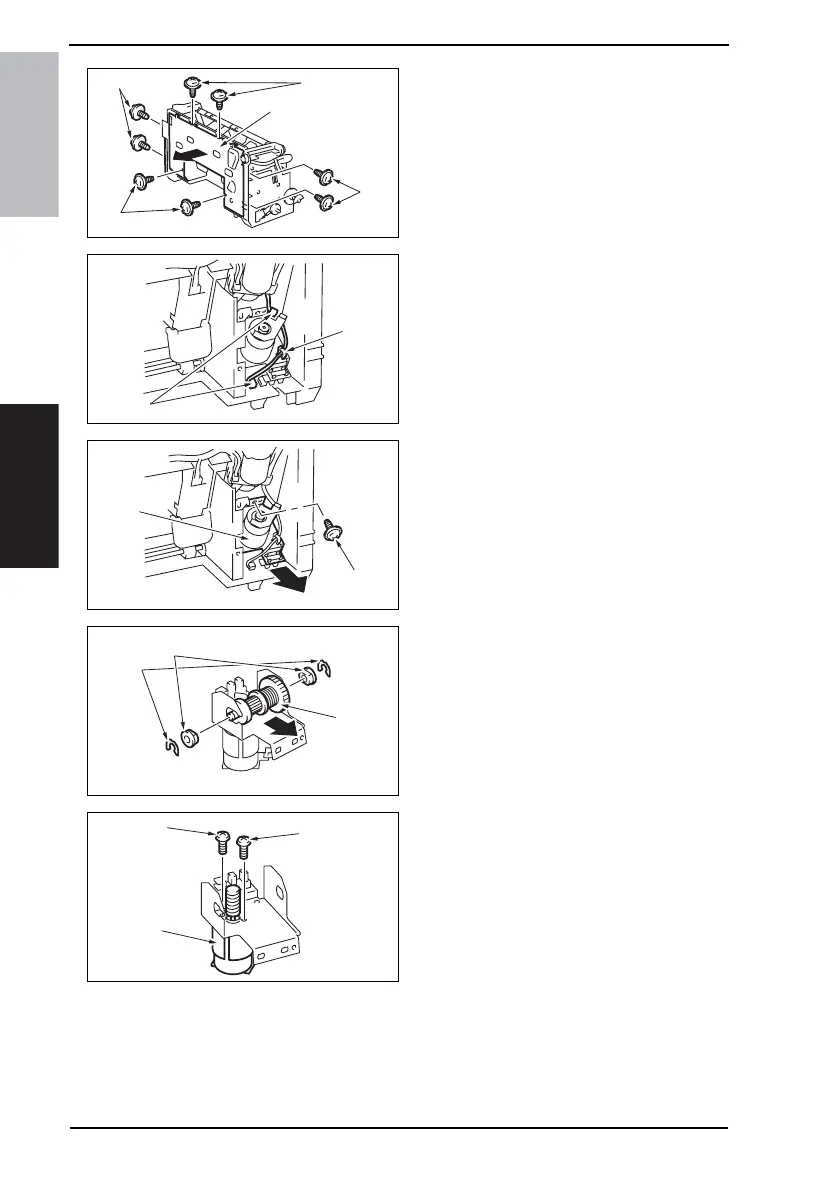

11. Remove eight screws [11], and
remove the Lower Cover [12].
12. Remove the wire saddle [13], and
unplug two connectors [14].
13. Remove the screw [15], and remove
the In & Out Guide Drive Motor Assy
[16].
14. Remove two C-rings [17].
15. Remove two bushings [18], and
remove the Clutch Gear Assy [19].
16. Remove two screws [20], and
remove the In & Out Guide Drive
Motor [21].
4511F2C528DA
[12]
[11]
[11]
[11]
[11]
4511F2C529DA
[13]
[14]
4511F2C530DA
[15]
[16]
4511F2C531DA
[19]
[18]
[17]
4511F2C532DA
[20]
[20]
[21]
