Dräger Fabius User Manual

Configuration
154
Instructions for Use Fabius MRI SW 3.n
Calibrate O2 Sensor
To calibrate the oxygen sensor correctly, make sure
it is exposed only to room air during the entire cali-
bration period.
To avoid leakage, remove the oxygen sensor
assembly from the inspiratory valve dome, and
insert the valve dome plug into the dome.
1 Press the »Calibrate O2 Sensor« soft key in
the Setup window.

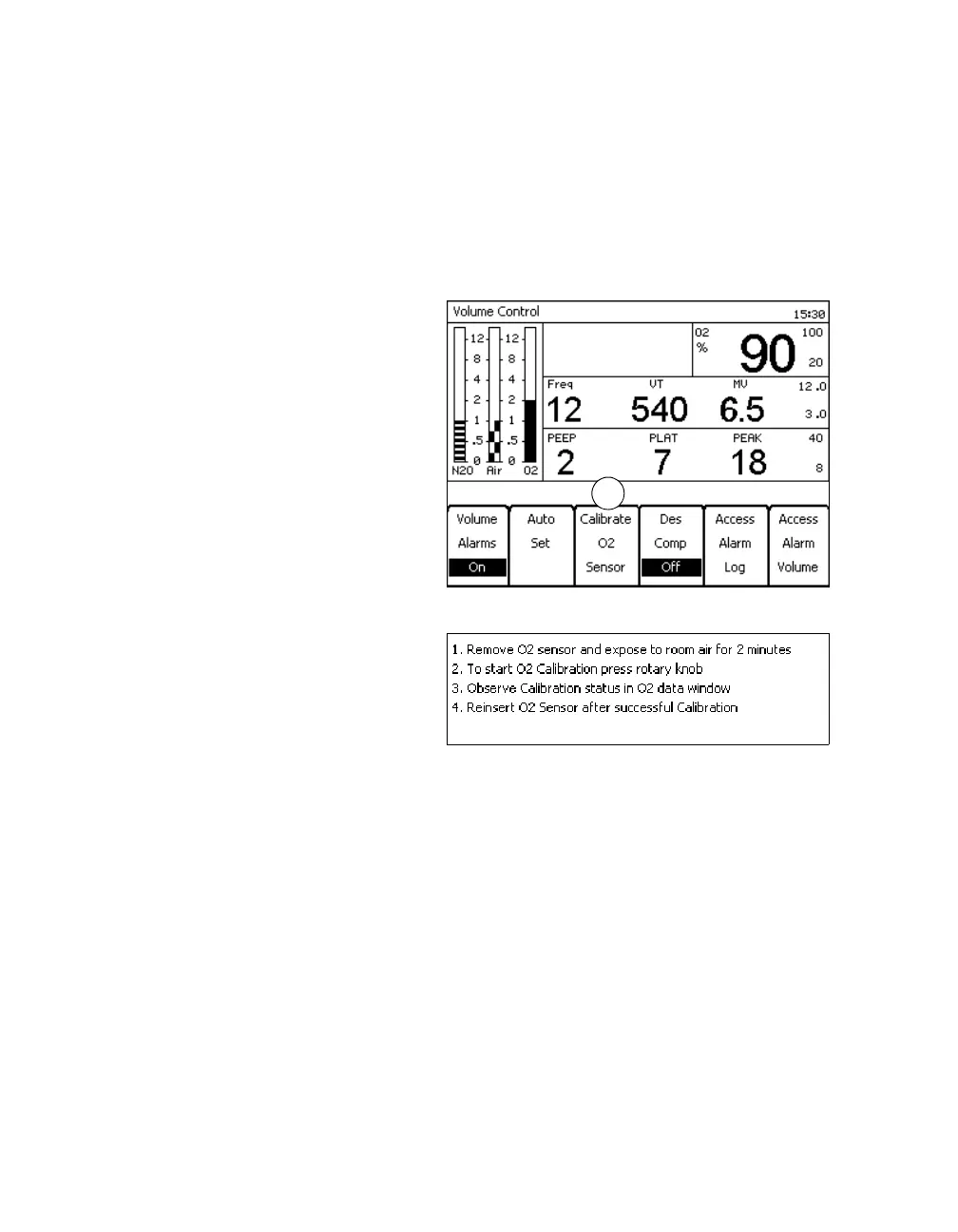

z The calibration instruction window replaces the
Setup window. Follow the directions provided:
– Remove O
2 Sensor and expose to room air for
2 minutes.
– To start O2 Calibration press rotary knob.
– Observe Calibration status in O
2 data window.
– Reinsert O
2 Sensor after successful Calibra-
tion.
503
1
514

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
