Dräger Fabius User Manual

Cleaning
178
Instructions for Use Fabius MRI SW 3.n

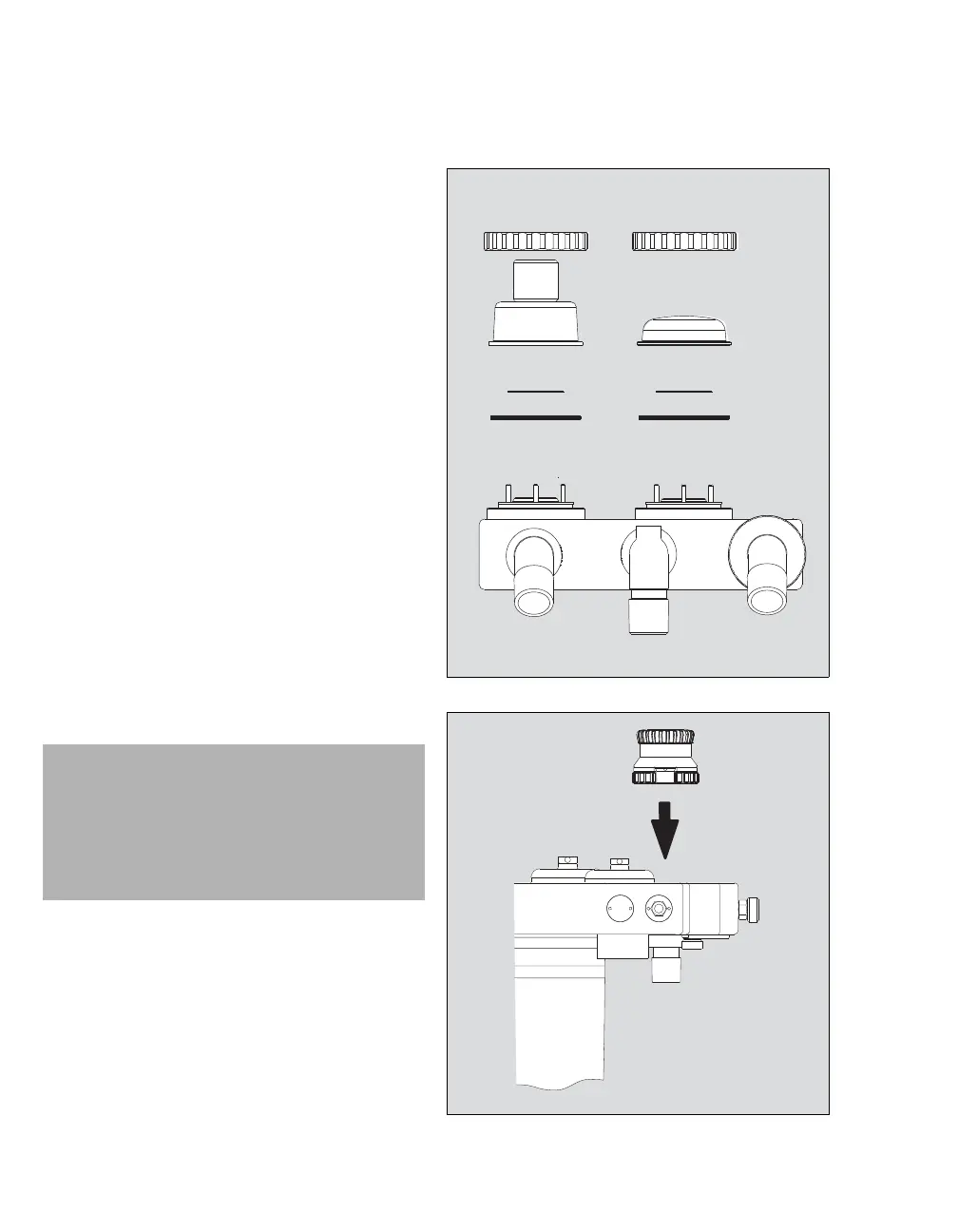

Reassembling the Breathing System
Attaching the Inspiratory Valve
1 Place the gasket on top of the valve disc.
2 Place the valve disc in the valve seat.
3 Fit the inspection cap (with port).
4 Tighten the retaining nut securely.
5 Insert the plug for the inspiration dome.
Attaching the Expiratory Valve
6 Place the gasket on top of the valve disc.
7 Place the valve disc in the valve seat.
8 Fit the inspection cap.
9 Tighten the retaining nut securely.
Attaching the APL Valve
10 Position the APL valve in the valve seat, and
tighten securely with the retaining nut.
WARNING
Route all lines/cables away from the APL
valve to prevent interference with the APL
valve adjustment knob. Lines/cables caught
underneath the APL valve adjustment knob
could interfere with proper functioning of this
valve.
060
1
2
3
4
6
7
8
9
5
046
10

Dräger Fabius Specifications

General

Type	Anesthesia Workstation
Display	Color TFT
Gas Supply	O2, N2O, Air
CO2 Absorber	Yes
Manufacturer	Dräger
Model	Fabius
Ventilation Modes	SIMV
Inspiratory Time	0.2-5 s
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
O2 Flow	0 to 15 L/min
Air Flow	0 to 15 L/min
