Assembly
64
Instructions for Use Fabius MRI SW 3.n
Connecting the Suction System*
The optional suction system for the Fabius MRI
consists of a suction regulator and a suction bottle
system. The suction regulator is attached to a
holder, which is fastened on the side channel on the
anesthesia device. The suction bottle desired by
the customer is attached to a separate swivel rail on
the side channel.

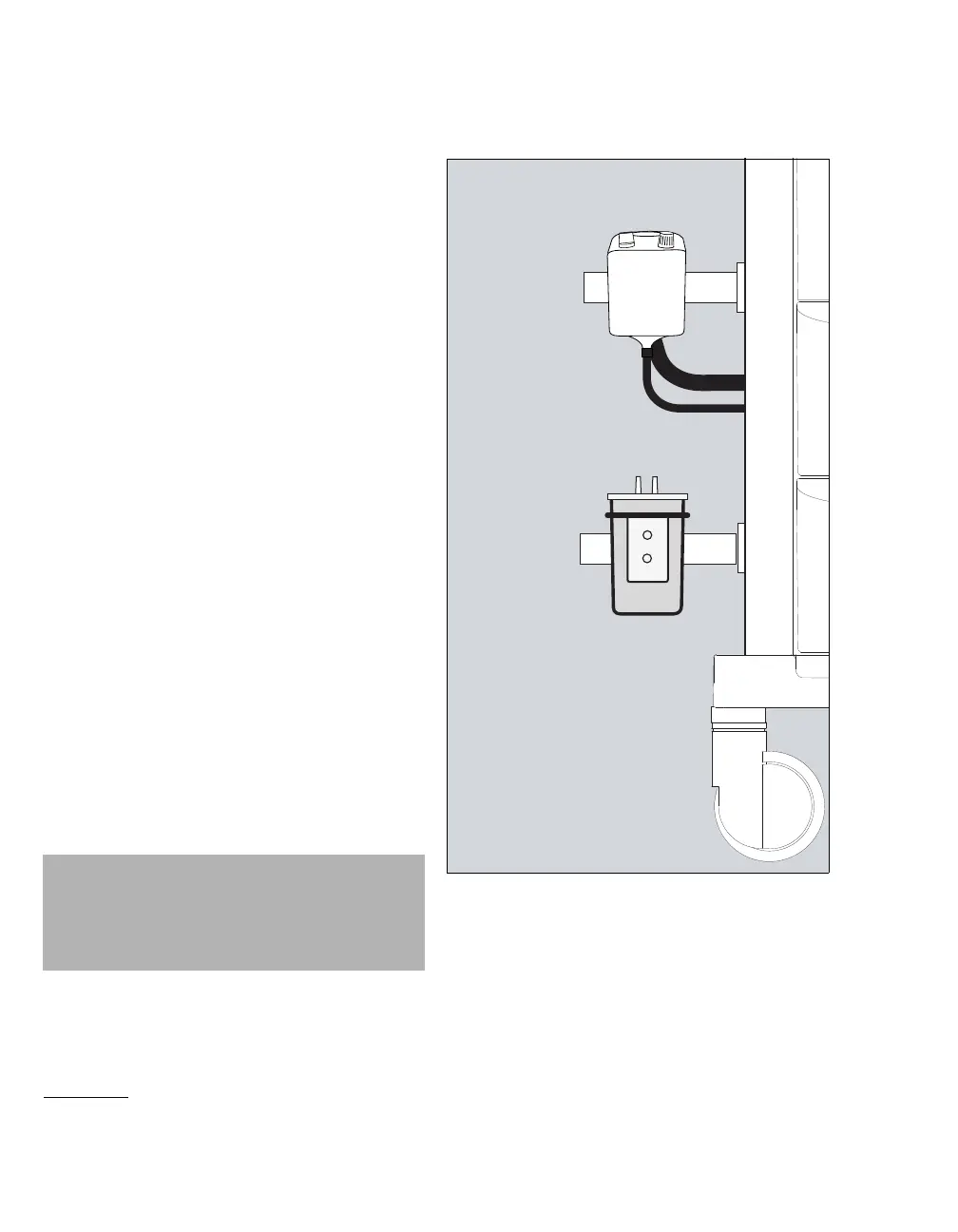

z Attach the carrier arm of the suction system on
the side channel on the side of the anesthesia
device.
1 Mount the suction regulator onto the bracket.
2 Install the bottle assembly in the slide mount on
the bracket.
z Prepare the suction system according to the
Instructions for Use provided with the suction
system.
Depending on the suction system used:
If AIR or O
2 is used as the driving gas:
z Secure the air connection hose of the suction
system to the air outlet on the gas supply block
(optional) or directly to the pipeline gas supply.
For vacuum-driven suction:
z Connect the vacuum hose of the suction system
directly to the pipeline gas supply.
Check that the suction system is ready for opera-
tion according to the Instructions for Use provided
with the suction system.
*optional
WARNING
Risk of equipment damage
The suction system should be used only in
ManSpont mode or with the Y-piece discon-
nected.
